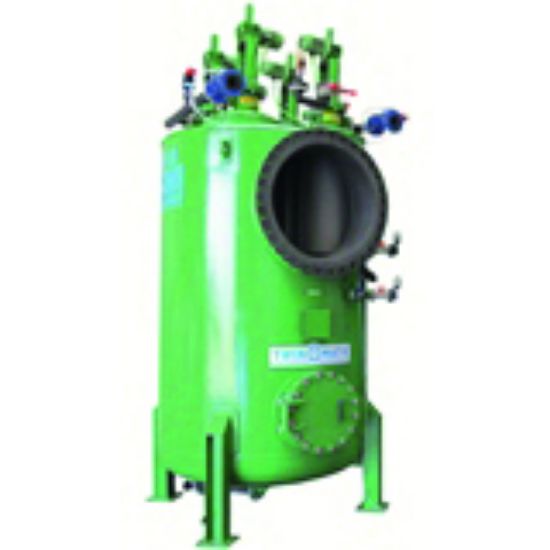

Parker TOM - Automatic self cleaning filter system

The automatic self cleaning filter system is specially designed for high flow rates and continuous operation. Note: A TwinOmatic is a custom made piece of equipment, always contact us for your specific requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TOM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	19300 to 60400 bbl/hr	Materials of Construction	Housing: Carbon Steel <br/>Screen: Stainless steel 316L<br/>Nozzles: PVC <br/>others on request
Maximum Operating Temperature	122.0	Clean Pressure Drop	'< 1.45 psi / < 0,1 bar
Weight	n/a (weight depends on number of screens, filtration area)	Division	Industrial Process Filtration Division
Filter Efficiency Rating	50 to 500 micron depending on application.	Control Voltage	Electrical / PLC
Connection Size	DN 250 to DN 350	Height	Various depending on number of screens, filtration area.
Brand	Twin Filter	Filter Area	28.4 to 91.7
Industry Application	Water Intake	Minimum Operating Pressure	29
Equipment Type	Filtration	Width	Various depending on number of screens, filtration area.
Filter Type	Mega
