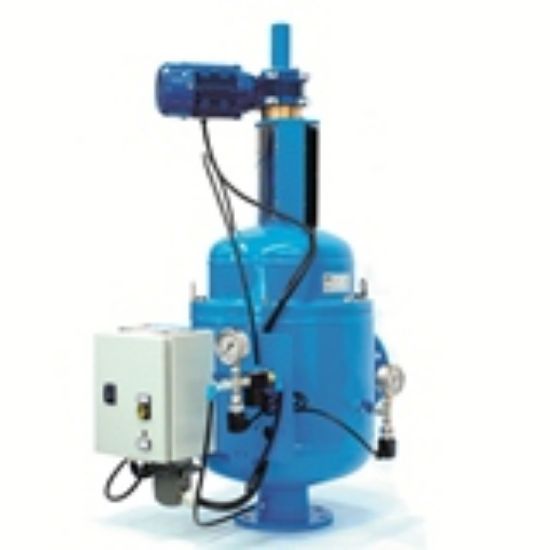

Parker TOC - Automatic self cleaning filter system

The automatic self cleaning filter system is specially designed for high flow rates and continuous operation. Note: A TwinOmatic is a custom made piece of equipment, always contact us for your specific requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TOC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	450 to 2200 bbl/hr	Maximum Operating Temperature	122.0
Brand	Twin Filter	Clean Pressure Drop	< 1.45
Weight	93 to 194 lb (Empty)	Filter Efficiency Rating	50 to 500 micron depending on application.
Materials of Construction	Housing: Carbon Steel <br/>Screen: Stainless steel 316L<br/>Nozzles: PVC <br/>others on request	Equipment Type	Filtration
Height	45.3 to 63.6	Filter Area	1.08 to 5.7
Control Voltage	Electrical / PLC	Division	Industrial Process Filtration Division
Width	18.9 to 23.2	Minimum Operating Pressure	29
Industry Application	Water Intake	Connection Size	DN 50 to DN 150
Filter Type	Compact
