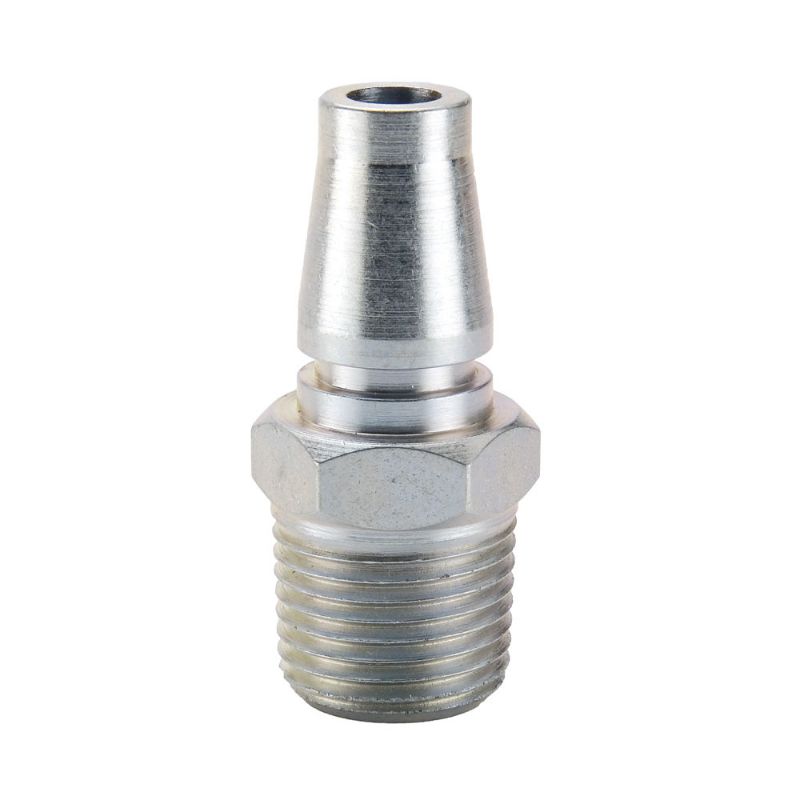

Parker TL-504-6MP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Name: Parker TL-504-6MP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series
SKU: TL-504-6MP
Price: 9.57 USD
Availability: InStock

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

6 In Stock

Summerville, SC

Partner Available:

21 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. TL-504-6MP

$9.57/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Pneumatic
Product Type	Push to connect	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	300 psi	Interchange Type	Schrader Twist Lock
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Hex Size	0.69 inch
Body Material	Steel	Hose I.D. (inch)	na
Coupling Half	Male Nipple	Body Size (inch)	1/2
Connection Thread Size (inch)	3/8 - 18	Connection Type	Male NPTF
Valve Type	Unvalved

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
