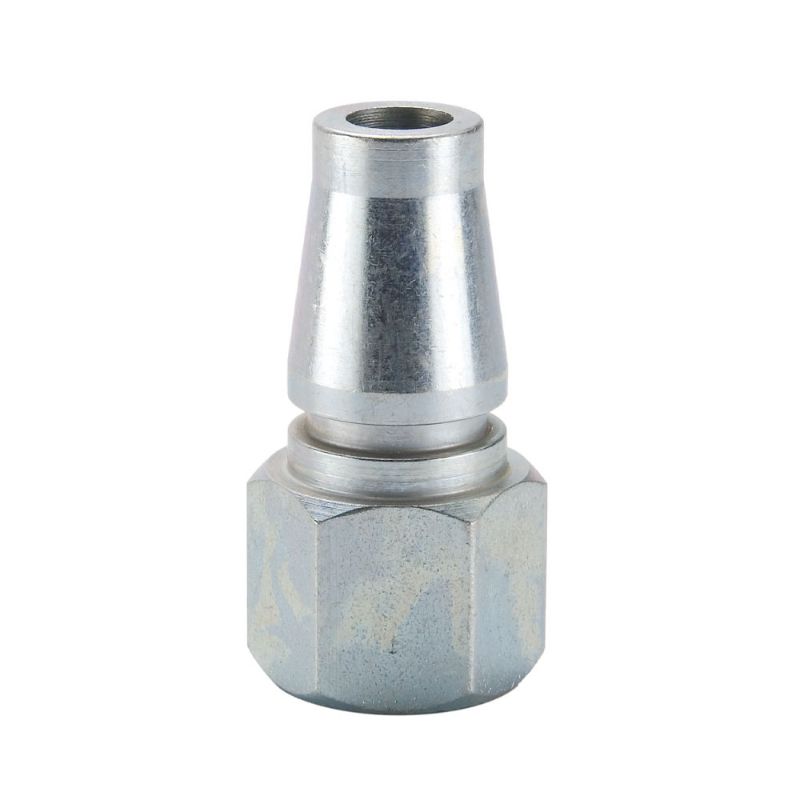

Parker TL-254-2FP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	15 In Stock

Brand Parker

Part No. TL-254-2FP

$9.52

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Push to Connect
Maximum Operating Temperature	250 °F	Body Material	Steel
Interchange Type	Schrader Twist Lock	Maximum Operating Pressure	300 psi
Plating Type	Zinc with clear trivalent chromate	Application	Pneumatic
Hex Size	0.5 inch	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Connection Type	Female NPTF
Valve Type	Unvalved	Connection Thread Size (inch)	1/8 - 27
Hose I.D. (inch)	na	Body Size (inch)	1/4
Coupling Half	Male Nipple

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
