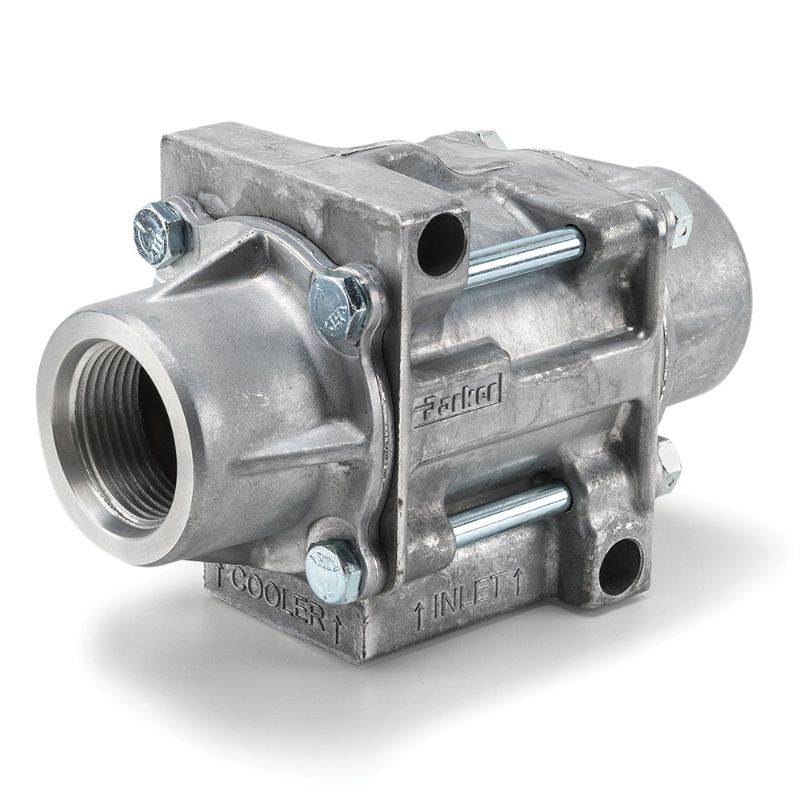

Parker TH-1000-16FO-13 - Hydraulic Thermal Bypass Valves - TH Series

Parker's thermal bypass valves modulate fluid temperature by shifting return line flow through the cooler, or bypassing it directly to the reservoir.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TH-1000-16FO-13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	60 Gal/min	Function	Diverter
Valve Port Size	1 inch	Actuation Type	Mechanical
Division	Quick Coupling Division	Body Material	Aluminum
Maximum Operating Temperature	175 °F	Maximum Operating Pressure	250 psi
Flow Rate	60 Gal/min	Minimum Operating Temperature	-30 °F
For Fluid Type	Hydraulic Oil	Seal Material	Elastomeric
Cracking Pressure (psi)	65	Connection Thread Size (inch)	1 5/16 - 12 UN
Shift Temperature (F)	100	Thread Type	Female SAE ORB
