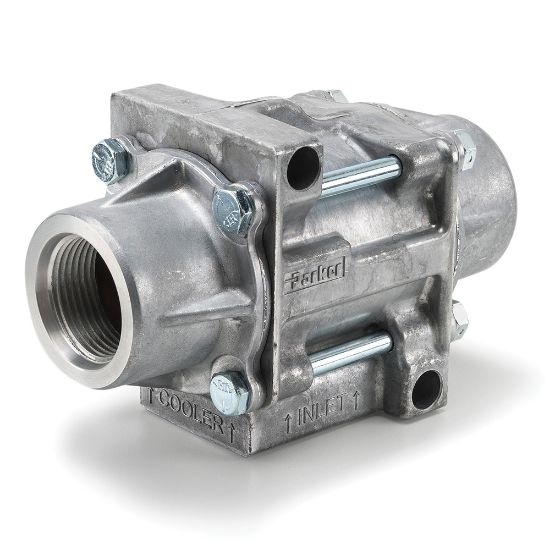

Parker TH-1000-16FO-05 - Hydraulic Thermal Bypass Valves - TH Series

Parker's thermal bypass valves modulate fluid temperature by shifting return line flow through the cooler, or bypassing it directly to the reservoir.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TH-1000-16FO-05

$180.71/each

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	250 psi	Seal Material	Elastomeric
Division	Quick Coupling Division	Maximum Operating Temperature	175 °F
Function	Diverter	For Fluid Type	Hydraulic Oil
Maximum Flow Rate	60 Gal/min	Body Material	Aluminum
Valve Port Size	1 inch	Flow Rate	60 Gal/min
Actuation Type	Mechanical	Minimum Operating Temperature	-30 °F
Connection Thread Size (inch)	1 5/16 - 12 UN	Shift Temperature (F)	100
Cracking Pressure (psi)	25	Thread Type	Female SAE ORB
