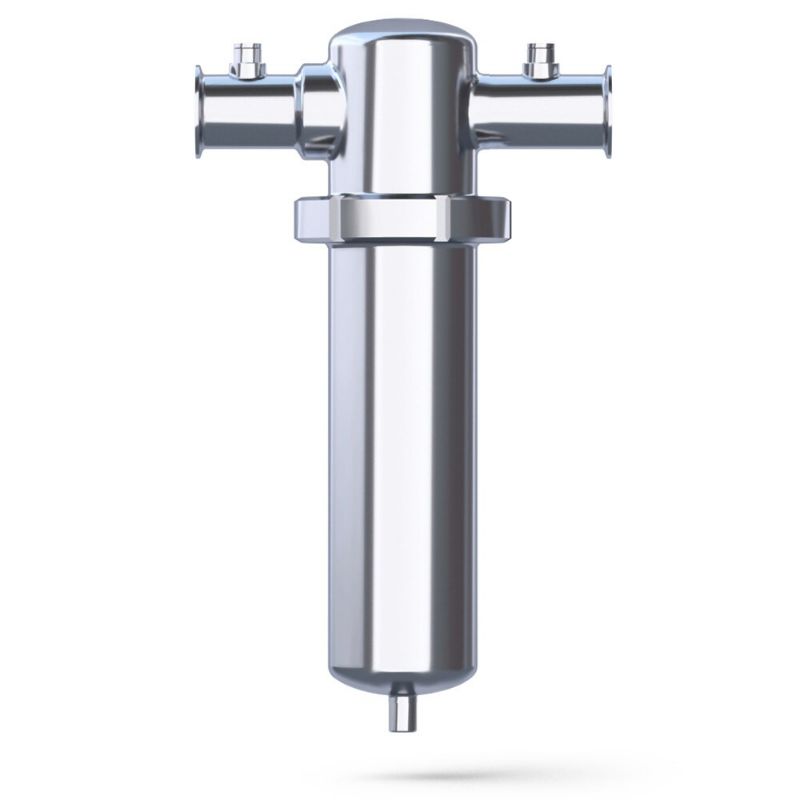

Parker TGE316/16CF-C/A - TGE ATEX Approved Stainless Steel Filters for Technical and Industrial Gases - Clamp Connection

ATEX approved stainless steel filters for filtration of technical and industrial gases in applications up to 16 bar(g).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TGE316/16CF-C/A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Element	TE14CF	Height	9.2 inch
Technology	Filtration	Filter Type	Stainless Steel
Product Type	Natural Gas Filter	Brand	Parker
Operating Pressure	232.0 psig Maximum	Filter Efficiency Rating	99.99999 %
Application	Filtration of Compressed Natural Gas	Division	Gas Separation and Filtration Division EMEA
Residual Oil Content	≤ 0.01 mg/m³	Division	Gas Separation and Filtration Division EMEA
Width	11 inch	Product Series	TGE ATEX Series
Flow Rate	780 m³/h @ 7 barg (459 cfm @ 102 psig)	Connection Type	Clamp ASME BPE 2"
Filter Type	High Efficiency Coalescing	Micron Rating	Down to 0.01 micron
