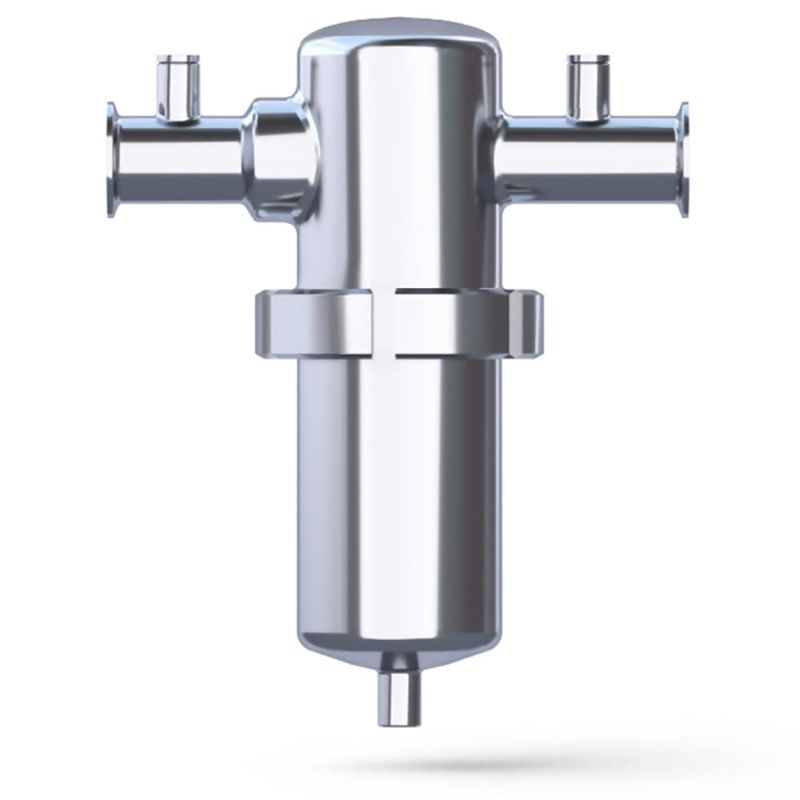

Parker TGE314/16C-C/A - TGE ATEX Approved Stainless Steel Filters for Technical and Industrial Gases - Clamp Connection

ATEX approved stainless steel filters for filtration of technical and industrial gases in applications up to 16 bar(g).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TGE314/16C-C/A

Products specifications

Attribute name	Attribute value
Compatible Element	TE13C	Width	140.0 mm
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Technology	Filtration	Height	9.8 inch
Filter Efficiency Rating	99.9999 %	Product Series	TGE ATEX Series
Operating Pressure	232.0 psig Maximum	Residual Oil Content	≤ 0.5 mg/m³
Filter Type	Stainless Steel	Application	Filtration of Compressed Natural Gas
Product Type	Natural Gas Filter	Brand	Parker
Flow Rate	500 m³/h @ 7 barg (294 cfm @ 102 psig)	Filter Type	Coalescing Prefilter
Connection Type	Clamp ASME BPE 1½"	Micron Rating	Down to 1 micron
