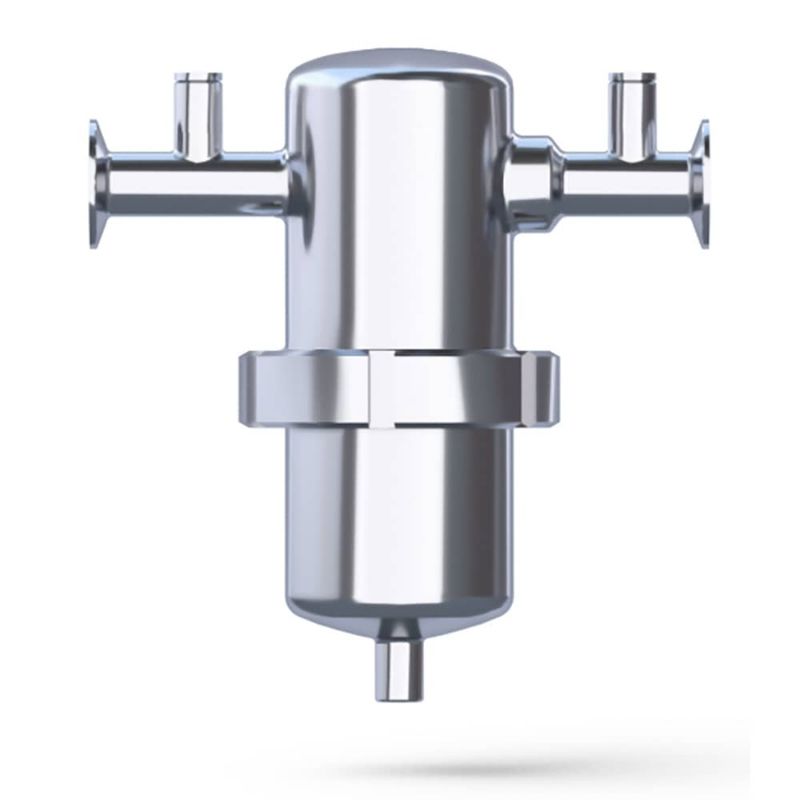

Parker TGE308/16C-C/A - TGE ATEX Approved Stainless Steel Filters for Technical and Industrial Gases - Clamp Connection

ATEX approved stainless steel filters for filtration of technical and industrial gases in applications up to 16 bar(g).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TGE308/16C-C/A

Products specifications

Attribute name	Attribute value
Filter Efficiency Rating	99.9999 %	Product Series	TGE ATEX Series
Filter Type	Stainless Steel	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Compatible Element	TE09C
Residual Oil Content	≤ 0.5 mg/m³	Height	9.4 inch
Operating Pressure	232.0 psig Maximum	Width	85.0 mm
Division	Gas Separation and Filtration Division EMEA	Application	Filtration of Compressed Natural Gas
Brand	Parker	Product Type	Natural Gas Filter
Connection Type	Clamp ASME BPE 1"	Flow Rate	220 m³/h @ 7 barg (129 cfm @ 102 psig)
Filter Type	Coalescing Prefilter	Micron Rating	Down to 1 micron
