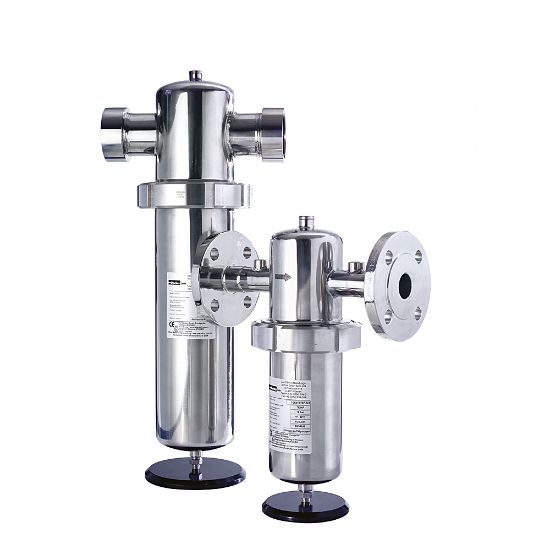

Parker TGE302/16A-B/A - TGE Series Stainless Steel Filters for Technical and Industrial Gases

Parker Zander TGE Series stainless steel filters for filtration of technical and industrial gases in applications up to 16 bar(g).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TGE302/16A-B/A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	1.5 °C	Application	Filtration of technical and industrial gases
Filter Efficiency Rating	n/a	Height	11.81 inch
Materials of Construction	Housing: stainless steel, Seals: FEPM	Weight	6.83 lb
Drain Port Size	1/4 inch	Compatible Element	TE09AE
Maximum Flow Rate	n/a Contact us	Maximum Operating Temperature	248 °F
Division	Gas Separation and Filtration Division EMEA	Connection Type	BSP-T DIN 2999, others on request
Maximum Operating Pressure	232.06 psig	Micron Rating	n/a MICRON
Width	7.76 inch	Brand	Zander
Filter Type	Activated carbon filter with TE09 element	Maximum Operating Pressure (barg)	16
Certificates	ATEX	Port Connection	1/4"
