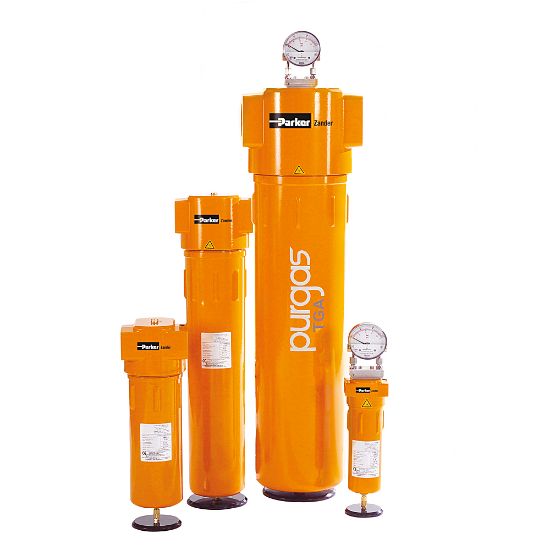

Parker TGA102/25P-B/A - TGA Series Filters for Technical and Industrial Gases

Parker TGA series filters for filtration of technical and industrial gases in applications up to 50 bar(g).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TGA102/25P-B/A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	BSP-P DIN ISO 228	Drain Port Size	1/4 inch
Minimum Operating Temperature	34.7 °F	Maximum Flow Rate	n/a Contact us
Maximum Operating Temperature	80 °C	Compatible Element	TA30PE
Materials of Construction	Housing: Aluminium, Seals: FEPM	Maximum Operating Pressure	362.59 psig
Weight	1.65 lb	Micron Rating	3 μm
Width	4.72 inch	Filter Efficiency Rating	99.99 %
Division	Gas Separation and Filtration Division EMEA	Height	249 mm
Brand	Zander	Application	Filtration of technical and industrial gases
Filter Type	Coarse filter with TA30 element size	Port Connection (inch)	1/4"
Maximum Operating Pressure (barg)	25	Certificates	ATEX
