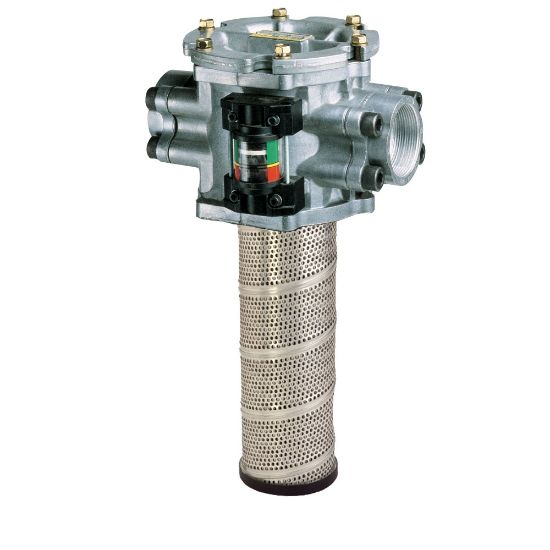

Parker TFP205QBPP35C321 - Low Pressure Tank Mounted Filter Moduflow™ Plus Series

Parker's Moduflow™ Plus series suction/return/duplex patented filter element features longer life and increased dirt capacity. Allowable operating pressure of 200 PSI/13.8 Bar and capable of flows up to 150 GPM/581 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TFP205QBPP35C321

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Style	Tank Mounted	Flow Rate	568
Bypass Valve Pressure Rating	35	Compatible Element	Mineral and Petroleum Based Fluid
Filter Element Type	05Q Microglass	Pressure Rating	200
Options	None	Port Type	2inch SAE flange face and SAE-24 combo
Housing Material	Aluminum	Weight	21
Minimum Operating Temperature	225	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	Indicator Type	Port Plugged, Port Plugged
Indicator Pressure Setting	35	Indicator Type	Port Plugged, Port Plugged
Seal Material	Nitrile	Filter Element	05Q Microglass
Bypass Valve (psi)	35.0	Port Connection Type	2inch SAE flange face and SAE-24 combo
Flow Rate	150.0	Options	None
