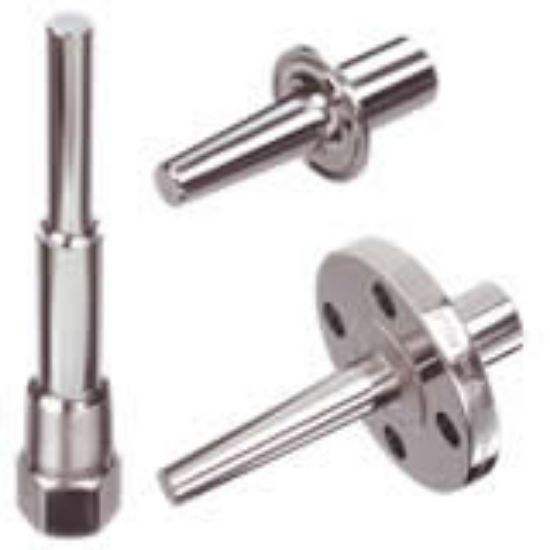

Parker Texas Thermowell - Thermowells,Texas Thermowells 21 Series

Parker PGI’s Texas Thermowell 21 Series thermowells feature threaded, flanged, socket weld, weld-in, Van Stone, limited space and sanitary styles. Custom designs and modifications to standard models are available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Texas Thermowell

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Tip Diameter	0.375" to 1.900" \| Consult factory for additional sizes	Maximum Process Connection	1/2" to 3" \| Consult factory for additional sizes
Additional Options	Special Markings \| Stainless Plug & Chain \| Internal Hydro Pressure Test \| Wake Frequency Calculation \| Full Penetration weld \| Consult factory for additional options	Connection Thread Size	1/2" to 1" \| Consult factory for additional sizes
Mounting Type	Threaded \| Flanged \| Van Stone \| Socket Weld \| Weld-in \| Ring Joint \| Sanitary \| Flat Face	Maximum Lag Length	0.0" to 9.5" \| Consult factory for additional sizes
Maximum Immersion Length	1" to 45" \| Consult factory for longer lengths	Body Material	316 SS \| 304 SS \| Hastelloy C \| Monel 400 \| Inconel 600 \| Consult factory for additional options
Bore Diameter	0.260" to 0.718" \| Consult factory for additional sizes	Division	Instrumentation Products Division
Shank Style	Tapered \| Straight \| Stepped	Maximum Root Diameter	0.375" to 1.900" \| Consult factory for additional sizes
