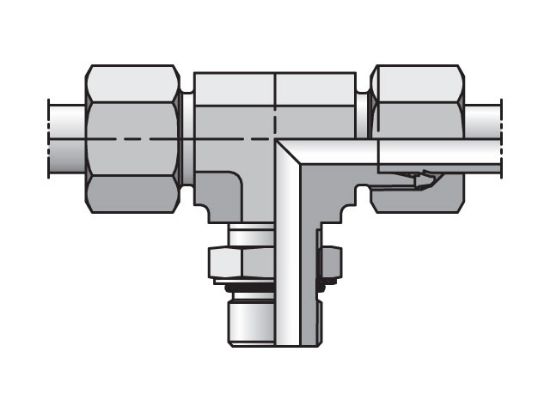

Parker TEE08ZL7/16UNFCF - EO/EO-2 Tee, Adjustable Branch - TEE-UNF

EO/EO-2 Tee, Adjustable Branch - 24° Flareless / SAE-ORB

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TEE08ZL7/16UNFCF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
End 2	8 mm	UOM	EA
O-Ring/Seal Material	Nitrile	End 1	8 mm
Pressure Rating	315 bar	End 3	7/16-20 UN/UNF-2A
EO-2 Seal	Nitrile	Pkg Qty	1
Pressure Series	Light	Material	Steel
Material	Steel	Configuration Sub-Type	Adjustable Branch - 24° Flareless / SAE-ORB
Parker Division	Tube Fitting	End 2 Type	mm
End 3 Type	UN/UNF-2A	Trade Name	EO/EO-2
End 1 Type	mm	EO-2 Seal	Nitrile
O-Ring/Seal Material	Nitrile	Series	EO-2
Tube Fitting/Adapter Type	Bite Type, EO/EO-2 Flareless	Configuration Type	Tee
Pressure Series	Light	Parker Group	Fluid Connector
Pressure Rating	315 bar	Inch/Metric	Metric
End 2	8 mm	End 1	8 mm
End 3	7/16-20 UN/UNF-2A
