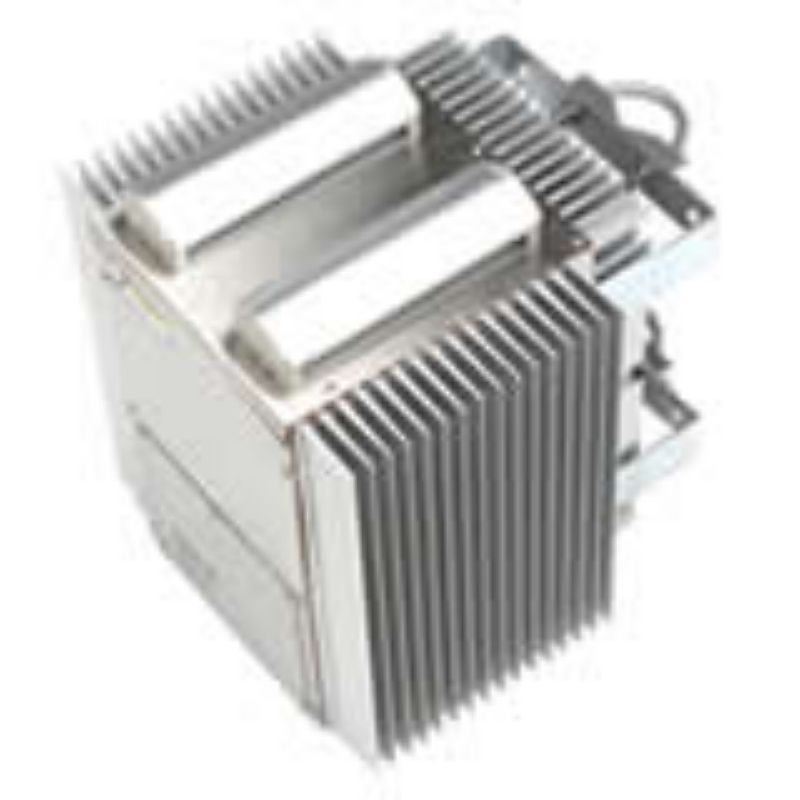

Parker TEC-8-DP2 - Battery Charger, ThermoElectric- TEC Series

Parker PGI's Thermoelectric (TEC) Battery Chargers offer a cost-effective alternative to dropped power and solar panels when natural gas or propane is available. TEC provides continuous power to 12 or 24 volt battery systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TEC-8-DP2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Cable Assembly Type	Diagnostics Cable
Includes	TEC in 304 SS Enclosure, Mounting Hardware, Supply Shut-off Valve with Strainer, Battery Interface Module and 20' [6 M] Battery Interface Harness	Weight	50
Additional Options	Cartridge Filter Canister with SS Mounting Bracket \| Supply Shut-Off Valve with Strainer - Consult Factory	Mounting Option	SS 2" U-Bolts with Nuts
Output Power	6.3 to 7.3 W ( continuous at 68°F / 20°C ambient)	For Fuel Type	Natural Gas: 900-1100 BTU/cu. Ft. [31,783-38,845 BTU/M3] \| Propane: 2400-2600 BTU/cu. Ft. [84,755-91,817 BTU/M3]
Input Voltage	12 VDC (system standard)	Wire Mesh Screen Included	n/a
Maximum Operating Temperature	120	Division	Instrumentation Products Division
Fuel Consumption	Natural Gas: 72 Cu. Ft./day [2.4 M3/day)	Mounting Option	SS 2" U-Bolt w/nuts
Wire Screen	N/A	Cable Assembly	Diagnostics Cable
