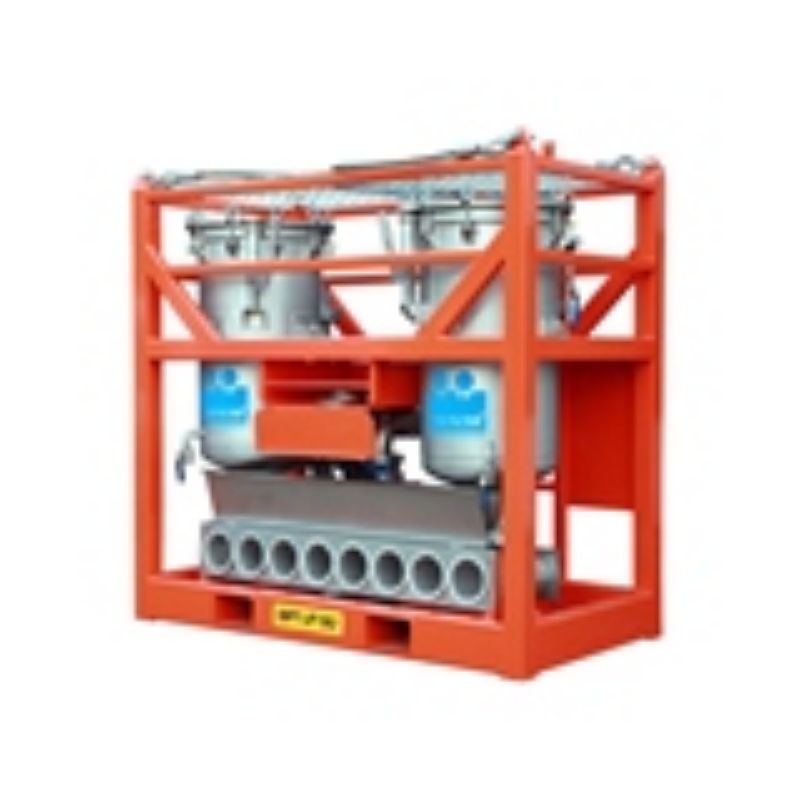

Parker TDW610-50-40-4B - Dual Vessel Filter Unit

This offshore proof, skid mounted filter unit offers a cost effective way to clean most common oilfield fluids and fluid-waste streams.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TDW610-50-40-4B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Twin Filter	Height	7.22
Connection Size	6 inch Union Fig. 100 M/F SS316L with O-ring Seal	Vessel Size	24 inch Others on request.
Product Type	Filtration	For Fluid Type	Fluid group 2 (non-hazardous fluids)
Width	3.94	Maximum Operating Pressure	101.5
Division	Industrial Process Filtration Division	ATEX Specifications Met	ATEX Zone 2 compliant
Pressure Relief Valve Type	1" Brass Set Point @ 7 bar (101.5 psi)	Maximum Operating Temperature	158.0
Materials of Construction	Frame: Carbon Steel (Powder Coated RAL 5015 others on request)<br/>Wetted parts: SS316L, suitable for H2S acc. NACE MR0175 <br/><br/>	Length	7.38
Weight	3306	Industry Application	Service Company
Maximum Flow Rate	12 Bbl/min	Specifications Met	Frame: DNV 2.7-1 (2013), EN/12079
Type/Configuration	Combination Cartridge 40" 2OF/222 and Bag L2

Product resources

Literature and Reference Materials

Oil and Gas Drilling Brochure (PDF)
