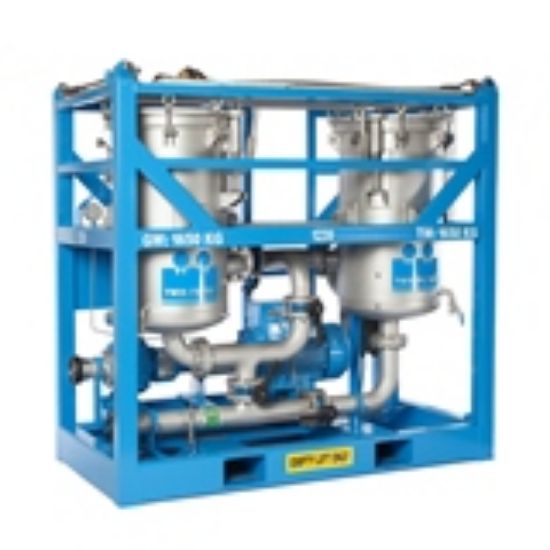

Parker TDW610-0-0-4B - Dual Vessel Filter Unit

This offshore proof, skid mounted filter unit offers a cost effective way to clean most common oilfield fluids and fluid-waste streams.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TDW610-0-0-4B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	3.94	Maximum Operating Temperature	158.0
Product Type	Filtration	Maximum Operating Pressure	101.5
For Fluid Type	Fluid group 2 (non-hazardous fluids)	Materials of Construction	Frame: Carbon Steel (Powder Coated RAL 5015 others on request)<br/>Wetted parts: SS316L, suitable for H2S acc. NACE MR0175 <br/><br/>
Pressure Relief Valve Type	1" Brass Set Point @ 7 bar (101.5 psi)	Vessel Size	24 inch Others on request.
Specifications Met	Frame: DNV 2.7-1 (2013), EN/12079	Industry Application	Service Company
Length	7.38	Weight	3086
ATEX Specifications Met	ATEX Zone 2 compliant	Division	Industrial Process Filtration Division
Height	7.22	Maximum Flow Rate	18 Bbl/min
Brand	Twin Filter	Connection Size	6 inch Union Fig. 100 M/F SS316L with O-ring Seal
Type/Configuration	Bag L2
