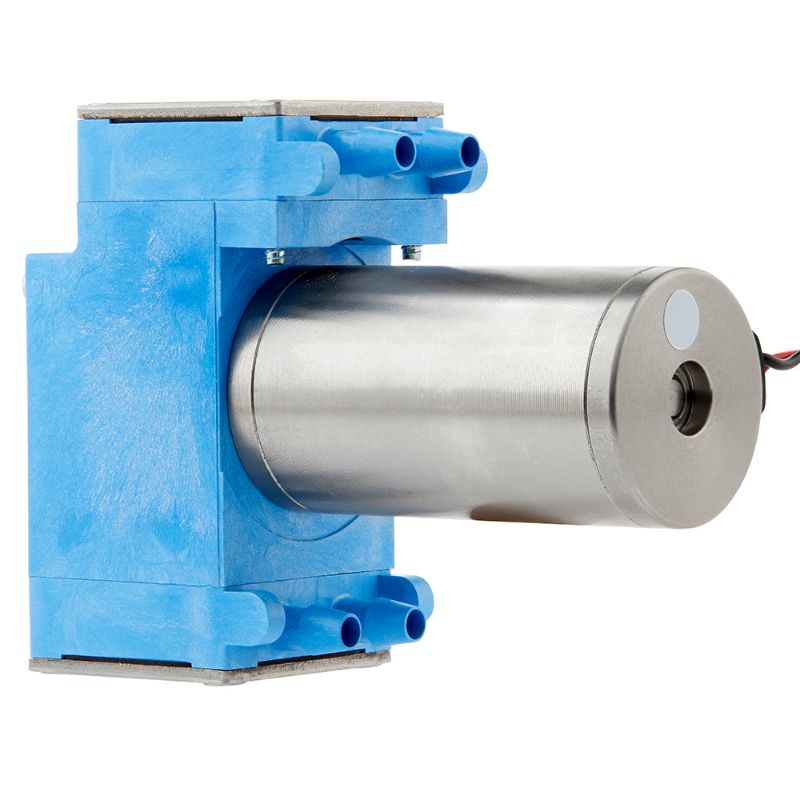

Parker TD004-13 - TTC Miniature Diaphragm Pump

Parker's TTC Miniature Diaphragm Pump Single and Dual Head Models have an industry leading performance to size ratio and can be configured to meet the most stringent flow, reliability, efficiency, size, and noise requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TD004-13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	255 g	Maximum Continuous Pressure	12 psi
Motor Type	Slotless Brushless DC	Body Material	Vectra A130 LCP
Noise Level	45 dBA	Vacuum Pressure Rating	-406 mm-Hg
Height	2.58 inch	Maximum Continuous Vacuum Pressure	-7.9 psi
Industry Application	CO2 Monitors	Flow Rate	8.5 L/min
Diaphragm Material	EPDM	Division	Precision Fluidics Division
Operating Pressure	0.8 bar	Product Type	Diaphragm Pump
For Fluid Type	Air	Width	1.18 inch
Operational Life	10000 Hours	Length	82.4 mm
Operating Temperature	5 to 50 °C	Operational Life	10,000 Hours
Motor Option	Slotless Brushless DC	Free Flow Rate	Up to 8.8 L/min
Pump Type	Pressure Only (High Flow)	Pump Size	Dual Head
