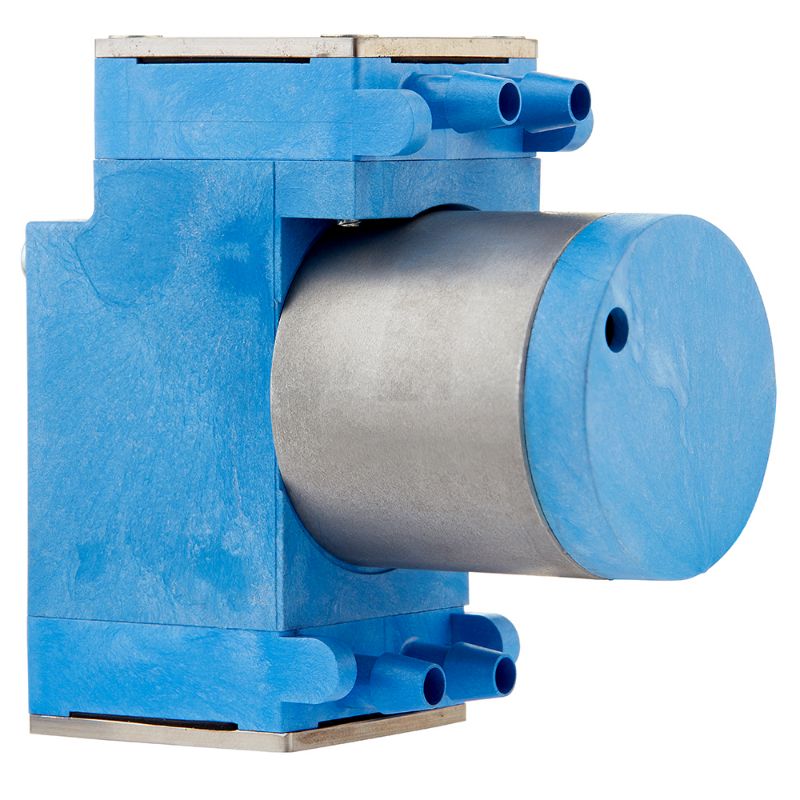

Parker TD003-11 - TTC Miniature Diaphragm Pump

Parker's TTC Miniature Diaphragm Pump Single and Dual Head Models have an industry leading performance to size ratio and can be configured to meet the most stringent flow, reliability, efficiency, size, and noise requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TD003-11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	33 mm	Flow Rate	6.5 L/min
Operating Pressure	0.8 bar	Industry Application	Anesthesia Monitor
Motor Type	Compact Brushless DC	Operating Temperature	5 to 50 °C
Length	63.1 mm	Operational Life	10000 Hours
Weight	176 g	Division	Precision Fluidics Division
Maximum Continuous Pressure	12 psi	For Fluid Type	Air
Maximum Continuous Vacuum Pressure	-7.9 psi	Noise Level	45 dBA
Product Type	Diaphragm Pump	Vacuum Pressure Rating	-406 mm-Hg
Body Material	Vectra A130 LCP	Diaphragm Material	EPDM
Height	2.58 inch	Pump Type	Pressure and/or Vacuum
Pump Size	Dual Head	Operational Life	10,000 Hours
Free Flow Rate	Up to 6.5 L/min	Motor Option	Compact Brushless DC
