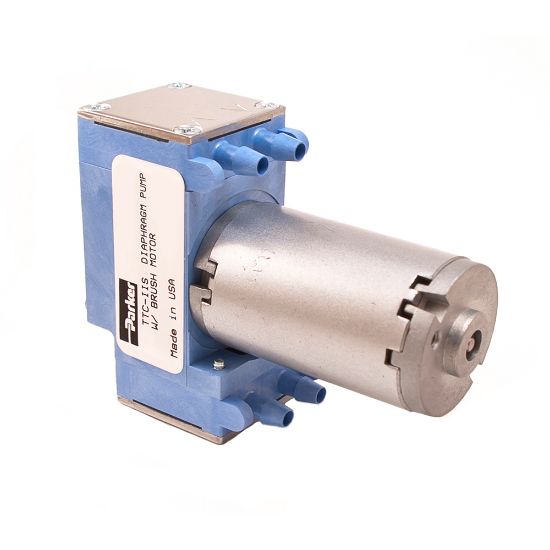

Parker TD001-13 - TTC Miniature Diaphragm Pump

Parker's TTC Miniature Diaphragm Pump Single and Dual Head Models have an industry leading performance to size ratio and can be configured to meet the most stringent flow, reliability, efficiency, size, and noise requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TD001-13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	1.18 inch	Length	85.7 mm
Maximum Continuous Vacuum Pressure	-406 mm-Hg	Motor Type	Iron Core Brush DC
Operating Temperature	5 to 50 °C	Maximum Continuous Pressure	0.8 bar
Operating Pressure	12 psi	For Fluid Type	Gas
Height	65.6 mm	Flow Rate	6.8 L/min
Vacuum Pressure Rating	-7.9 psi	Weight	244 g
Body Material	Vectra A130 LCP	Noise Level	45 dBA
Operational Life	3000 Hours	Industry Application	Compression Therapy
Diaphragm Material	EPDM	Division	Precision Fluidics Division
Product Type	Diaphragm Pump	Pump Size	Dual Head
Operational Life	3,000 Hours	Motor Option	Iron Core Brush DC
Free Flow Rate	Up to 6.8 L/min	Pump Type	Pressure Only (High Flow)
