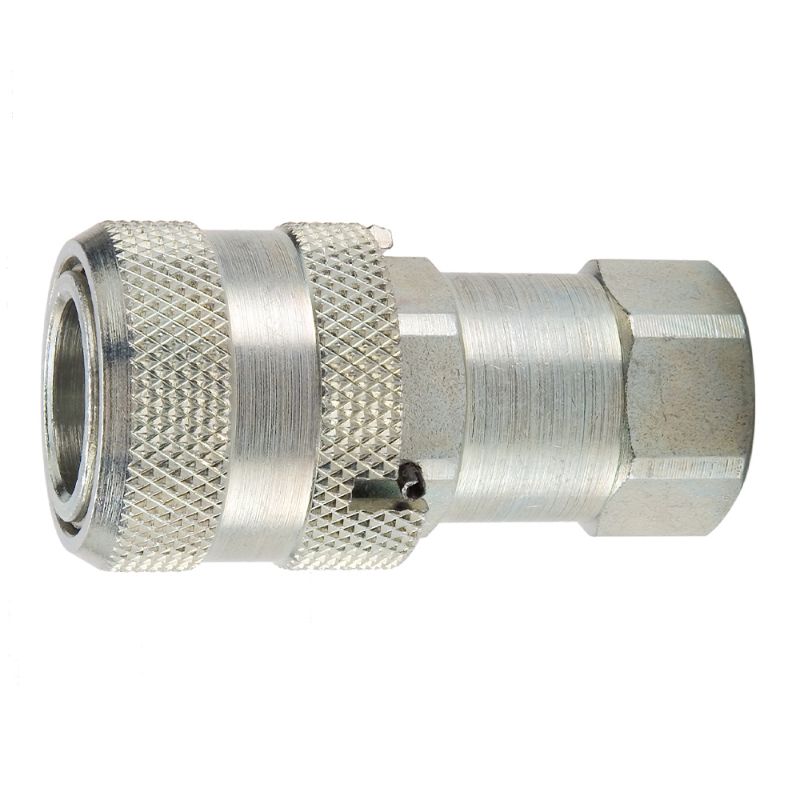

Parker TC-371 - High Pressure Application Quick Couplings - TC Series

Parker's high pressure quick couplers and nipples are ideal for use with hydraulic equipment where high pressure fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	42 In Stock

Brand Parker

Part No. TC-371

$76.74

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Maximum Operating Pressure	10000 psi	Seal Material	Fluorocarbon
Dimensional Weight	0.05341726618705036 lb	Plating Type	Zinc with clear trivalent chromate
Product Type	Manual Connect	Connection Type	Female NPSF
Connection Thread Size	3/8"-18 inch	Minimum Operating Temperature	-15 °F
Valve Type	Poppet	Hex Size	0.94
Application	High Pressure Hydraulics	Maximum Operating Temperature	400 °F
Body Size	3/8 inch	Maximum Flow Rate	6 Gal/min
Division	Quick Coupling Division	Coupling Half	Female Coupler

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
