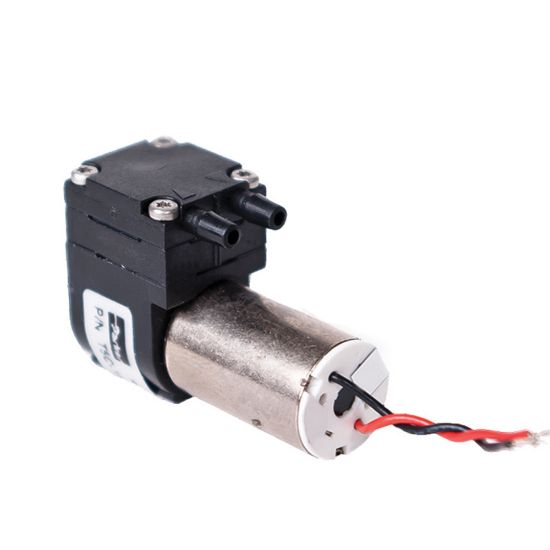

Parker T5-1LI-03-1EEB-1 - T2-05 Micro Diaphragm Pump

Parker's T2-05 micro diaphragm pump is designed to fit where other pumps cannot due to its small, compact package size. The pump's low power, small size, and light weight play a critical role in portable gas detection and medical applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. T5-1LI-03-1EEB-1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Industry Application	Sidestream CO2	Weight	14 g
Operational Life	6000 Hours	Operating Pressure	6.2 psi
Maximum Continuous Pressure	2.0 psi	For Fluid Type	Gas
Motor Type	Coreless Brush (Low Inductance)	Height	22.6 mm
Noise Level	45 dBA	Vacuum Pressure Rating	-5.3 psi
Division	Precision Fluidics Division	Diaphragm Material	EPDM
Operating Temperature	-20 to 50 °C	Length	1.15 inch
Body Material	ABS	Flow Rate	0.8 L/min
Width	13.5 mm	Maximum Continuous Vacuum Pressure	-2 psi
Product Type	Diaphragm Pump	Motor Option	Coreless Brush (Low Inductance)
Pump Size	Single Head	Free Flow Rate	Up to 0.8 L/min
Operational Life	Up to 6,000 hours	Pump Type	Pressure and/or Vacuum
