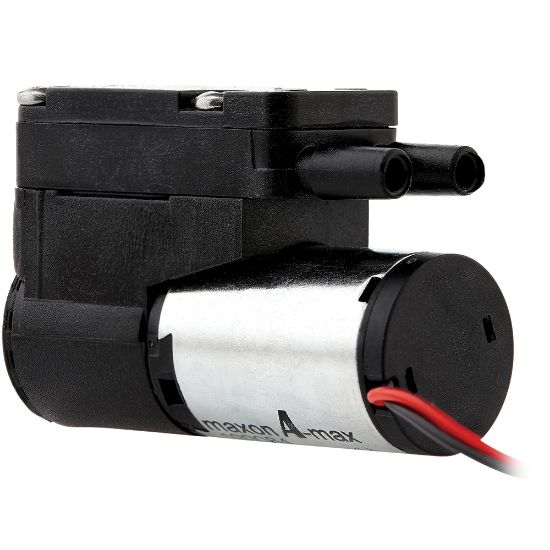

Parker T3HP-1PD-12-1SNP - T2-03 Micro Diaphragm Pump

Parker's T2-03 diaphragm pump is ideal for higher performance fixed and portable air/gas applications requiring high flow (up to 2.5 slpm), pressure and vacuum, high efficiency, long life, small size, light weight, and intrinsic safety capabilities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. T3HP-1PD-12-1SNP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Diaphragm Material	Neoprene	Length	2.28 inch
Operational Life	up to 10000 Hours	Flow Rate	2.5 L/min
Height	24.1 mm	For Fluid Type	Gas
Body Material	PPS	Width	0.59 inch
Division	Precision Fluidics Division	Industry Application	Portable Gas Detection
Maximum Continuous Pressure	8 psi	Operating Pressure	827 mbar
Motor Type	Ironless Core Brush (Coreless)	Product Type	Diaphragm Pump
Noise Level	45 dBA	Weight	42 g
Maximum Continuous Vacuum Pressure	-150 mm-Hg	Operating Temperature	0 to 50 °C
Vacuum Pressure Rating	-9.8 psi	Pump Size	Single Head
Free Flow Rate	Up to 2.5 L/min	Operational Life	Up to 10,000 Hours
Motor Option	Coreless Brush (High Efficiency)	Pump Type	Pressure and/or Vacuum
