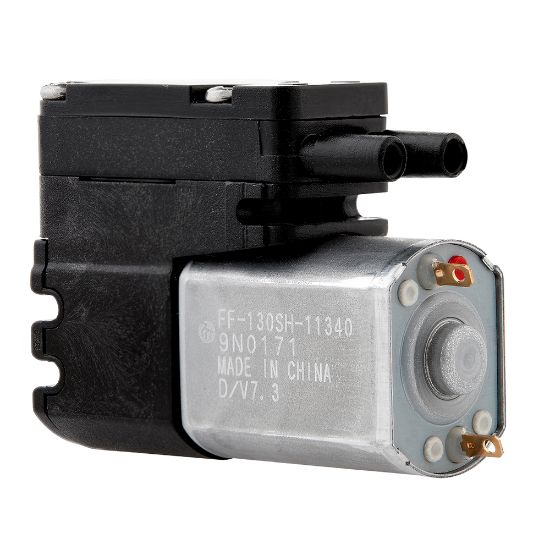

Parker T3EP-1ST-05-3FFP - T2-03 Micro Diaphragm Pump

Parker's T2-03 diaphragm pump is ideal for higher performance fixed and portable air/gas applications requiring high flow (up to 2.5 slpm), pressure and vacuum, high efficiency, long life, small size, light weight, and intrinsic safety capabilities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. T3EP-1ST-05-3FFP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	PPS	Division	Precision Fluidics Division
Industry Application	Compression Therapy	Vacuum Pressure Rating	-508 mm-Hg
Flow Rate	1.5 L/min	Maximum Continuous Vacuum Pressure	-104 mm-Hg
For Fluid Type	Gas	Operating Pressure	12 psi
Width	16 mm	Weight	33 g
Product Type	Diaphragm Pump	Diaphragm Material	FKM
Noise Level	45 dBA	Operational Life	up to 5000 Hours
Operating Temperature	0 to 50 °C	Height	1.32 inch
Length	44.7 mm	Maximum Continuous Pressure	2 psi
Motor Type	Iron Core Brush	Pump Size	Single Head
Free Flow Rate	Up to 1.5 L/min	Pump Type	Pressure and/or Vacuum
Operational Life	Up to 5,000 Hours	Motor Option	Iron Core Brush
