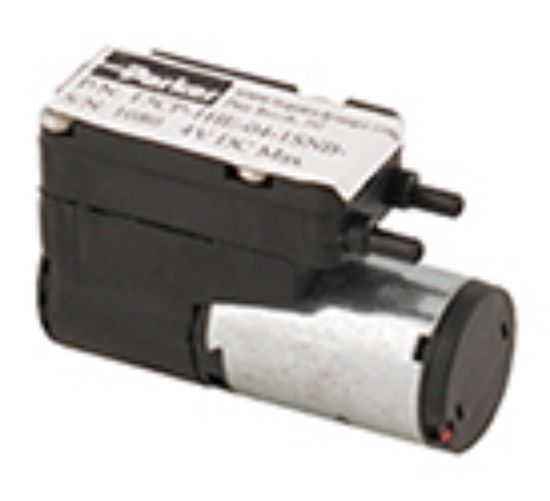

Parker T3CP-1HE-06-1SNB - T2-03 Micro Diaphragm Pump

Parker's T2-03 diaphragm pump is ideal for higher performance fixed and portable air/gas applications requiring high flow (up to 2.5 slpm), pressure and vacuum, high efficiency, long life, small size, light weight, and intrinsic safety capabilities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. T3CP-1HE-06-1SNB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Pressure	5 psi	Industry Application	Medical Instruments
Length	1.64 inch	Operating Temperature	0 to 50 °C
Diaphragm Material	Neoprene	Weight	33 g
Maximum Continuous Vacuum Pressure	-104 mm-Hg	Maximum Continuous Pressure	2 psi
Operational Life	up to 10000 Hours	Flow Rate	2.8 L/min
Height	24.1 mm	For Fluid Type	Gas
Division	Precision Fluidics Division	Vacuum Pressure Rating	-254 mm-Hg
Product Type	Diaphragm Pump	Body Material	ABS
Noise Level	45 dBA	Width	15 mm
Motor Type	Ironless Core Brush (Coreless)	Free Flow Rate	up to 2.8 L/min
Pump Size	Single Head	Operational Life	Up to 10,000 Hours
Pump Type	Pressure and/or Vacuum	Motor Option	Coreless Brush (High Efficiency)
