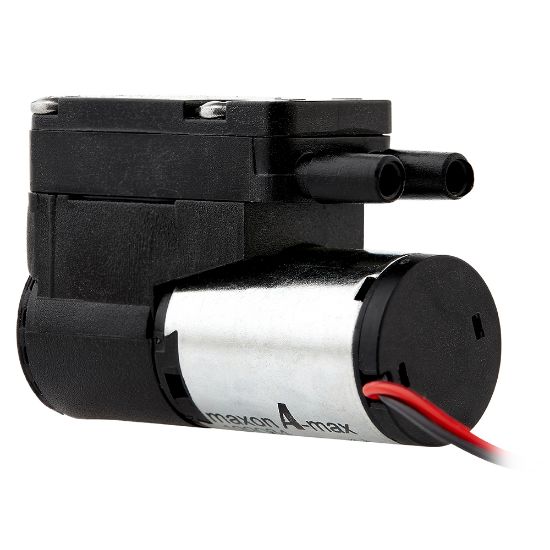

Parker T3CP-1HE-04-2SEB - T2-03 Micro Diaphragm Pump

Parker's T2-03 diaphragm pump is ideal for higher performance fixed and portable air/gas applications requiring high flow (up to 2.5 slpm), pressure and vacuum, high efficiency, long life, small size, light weight, and intrinsic safety capabilities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. T3CP-1HE-04-2SEB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	1.1 L/min	Noise Level	45 dBA
Division	Precision Fluidics Division	Diaphragm Material	EPDM
Operating Temperature	0 to 50 °C	Maximum Continuous Pressure	138 mbar
Product Type	Diaphragm Pump	For Fluid Type	Air
Body Material	ABS	Motor Type	Ironless Core Brush (Coreless)
Industry Application	Trace Detection	Vacuum Pressure Rating	-4.9 psi
Operating Pressure	5 psi	Maximum Continuous Vacuum Pressure	-104 mm-Hg
Width	0.59 inch	Weight	33 g
Length	41.7 mm	Operational Life	up to 10000 Hours
Height	0.95 inch	Pump Size	Single Head
Operational Life	Up to 10,000 Hours	Pump Type	Pressure and/or Vacuum
Motor Option	Coreless Brush (High Efficiency)	Free Flow Rate	up to 1.1 L/min
