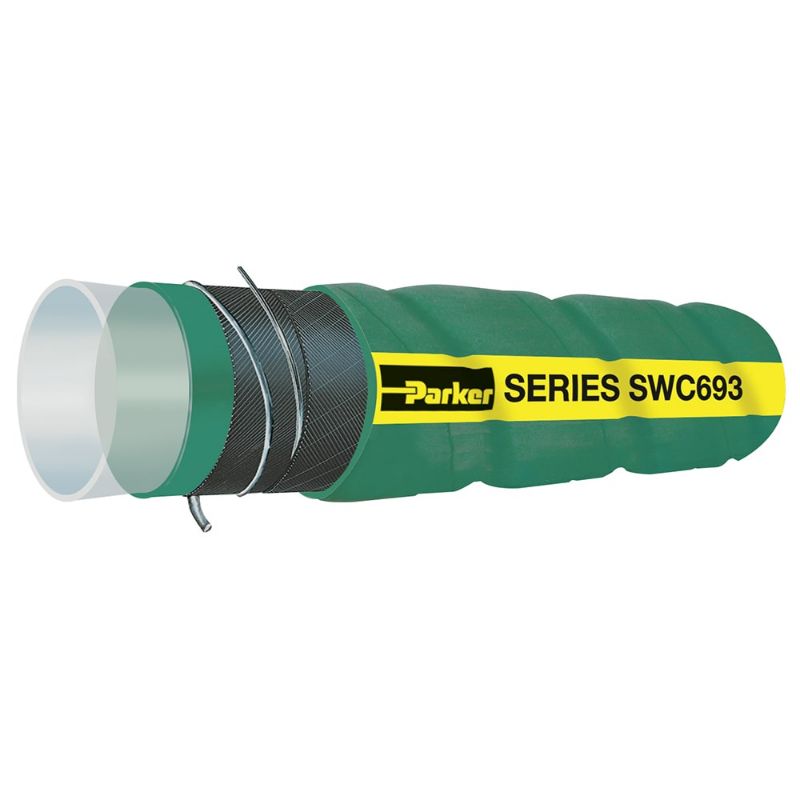

Parker SWC693-3000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Name: Parker SWC693-3000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE
SKU: SWC693-3000
Price: 35.30 USD
Availability: InStock

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

AFP Availability:

71 In Stock

Sumter, SC

Partner Available:

1026 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. SWC693-3000

$35.30/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Application	Oilfield
Minimum Operating Temperature	-40 °F	Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Weight	1.45 lb/ft
Maximum Operating Pressure	200 psi	Nominal Hose Inside Diameter	80 mm
Minimum Bend Radius	5 inch	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	76.2 mm	Vacuum Pressure Rating	29 Inch-Hg
Cover Structure	Corrugated	Outside Diameter	3.530 inch
Size	-48	Media	Acids
Compatible Fitting	n/a	Maximum Operating Temperature	82 °C
Division	Hose Products Division	Color	Green
Hose I.D. (inch)	3
