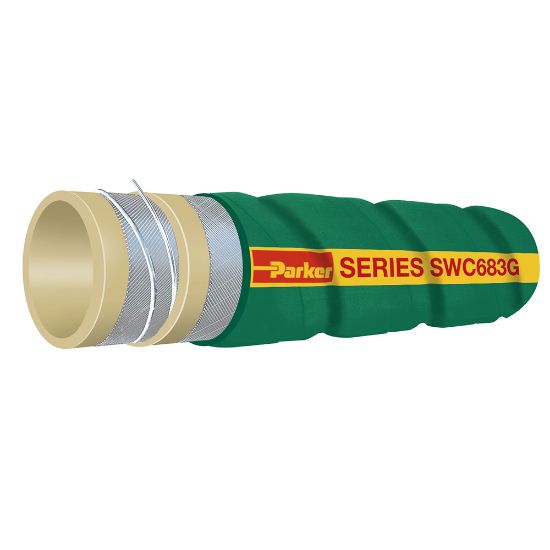

Parker SWC683G-3000 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SWC683G-3000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Inside Diameter	3 inch
Outside Diameter	3.630 inch	Compatible Fitting	n/a
Nominal Hose Inside Diameter	80 mm	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Application	Processing	Minimum Operating Temperature	-40 °C
Cover Structure	Corrugated	Size	-48
Hose Inner Tube Material	Tan (MXLPE)	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Weight	2.88 kg/m	Vacuum Pressure Rating	737 mm-Hg
Minimum Bend Radius	6 inch	Maximum Operating Pressure	13.8 bar
Division	Hose Products Division	Media	Acids
Color	Green	Hose I.D. (inch)	3
