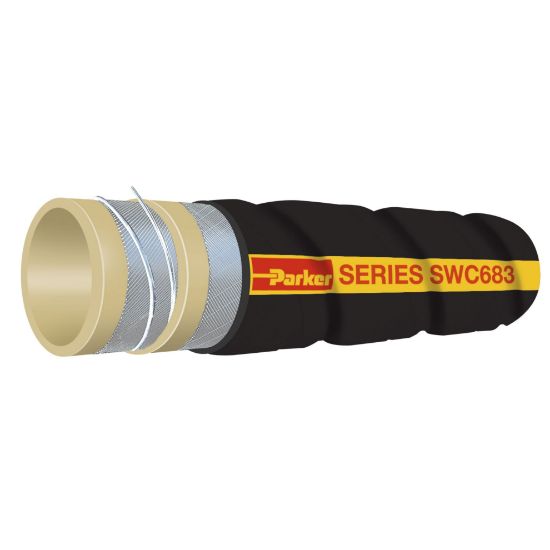

Parker SWC683-3000 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SWC683-3000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Size	-48	Minimum Bend Radius	152.4 mm
Weight	1.93 lb/ft	Inside Diameter	3 inch
Compatible Fitting	n/a	Media	Solvents
Application	Transportation	Maximum Operating Pressure	200 psi
Outside Diameter	3.630 inch	Cover Structure	Corrugated
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Hose Inner Tube Material	Tan (MXLPE)
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Maximum Operating Temperature	121 °C
Nominal Hose Inside Diameter	80 mm	Minimum Operating Temperature	-40 °F
Division	Hose Products Division	Vacuum Pressure Rating	29 Inch-Hg
Hose I.D. (inch)	3	Color	Black

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
