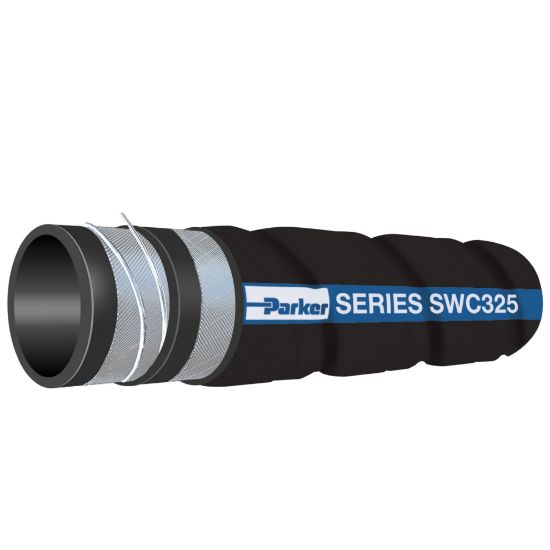

Parker SWC325-1500 - ARCTIC TRANSLITE® Low Temperature Corrugated Petroleum Transport Suction Hose, Series SWC325

Arctic Translite Low Temperature Corrugated Petroleum Transport Suction Hose is designed for suction, discharge and transfer oil and refined fuels in applications to -67°F and 150 psi, Series SWC325

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SWC325-1500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Fuels (Biodiesel) - Check fuel type with our catalogue chart.	Application	Petroleum Transfer
Cover Color	Black	Hose Inner Tube Material	Black
Vacuum Pressure Rating	Full	Inside Diameter	38.1 mm
Cover Material	Nitrile Blend	Outside Diameter	52.8 mm
Division	Hose Products Division	Package Type	Coil
Minimum Operating Temperature	-55 °C	Length per Package	100 ft
Design Factor	4:1	Weight	0.38 kg/ft
Maximum Operating Pressure	10.3 bar	Minimum Bend Radius	3.8 mm
Maximum Operating Temperature	180 °F	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Cover Structure	Corrugated	Hose I.D. (inch)	1-1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
