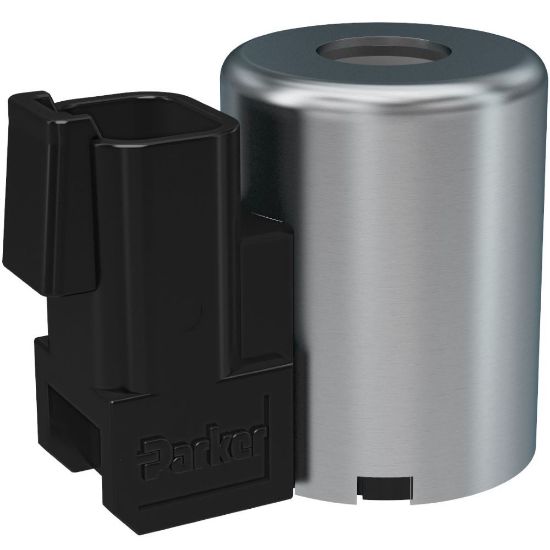

Parker SW7LWD012 - 1/2" Short Coil

Parker's -8 size proportional pressure reducing/relieving valves are complemented by a robust, hermetically sealed, IP69K rated selection of SW7L family coils. 12 & 24 voltage options available, along with 3 termination style options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SW7LWD012

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Diode Included	No	Seal Material	n/a
Resistance	10.1 Ω	Current	1.2 A
Flow Rate	n/a	Body Material	n/a
Maximum Operating Temperature	+200 °C	Coil Type	Standard
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Weight	.44 lb	Maximum Operating Pressure	n/a
Duty Cycle	Continuous @ 100% Voltage	Maximum Flow Rate	n/a
Minimum Operating Temperature	-40 °C	Actuation Type	n/a
For Fluid Type	n/a	Function	1/2" Coil, Short
Connection Type	Dual Lead Wire	Power Consumption	14 Watt
Input Voltage	12 VDC
