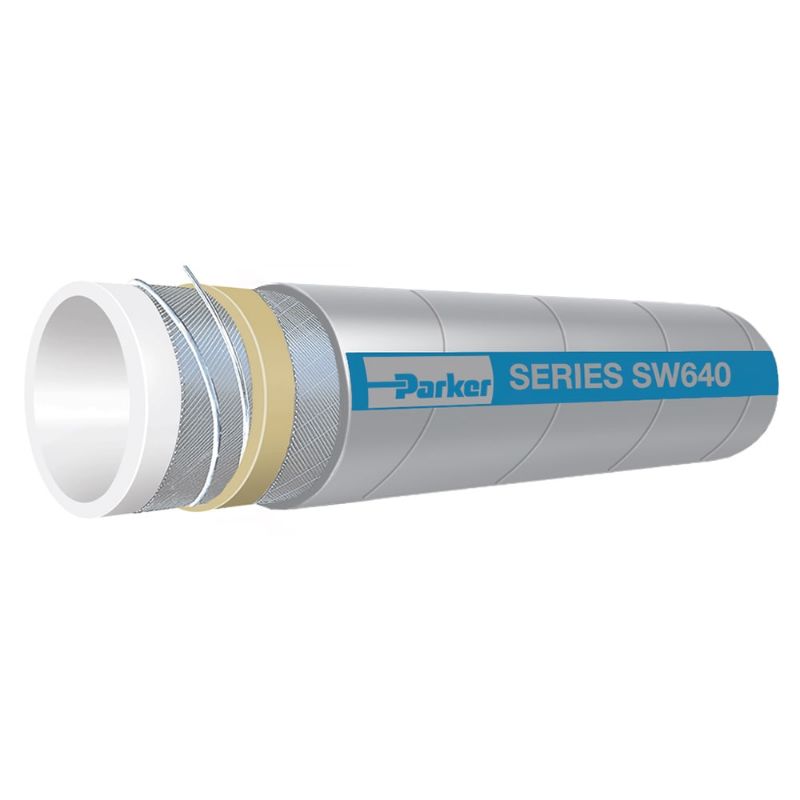

Parker SW640-4000 - TITANFLEX® Food and Beverage Suction Hose, Series SW640

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SW640-4000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Hose Inner Tube Material	White
Vacuum Pressure Rating	Full	Package Type	Coil
Weight	3.14	Cover Material	Nitrile
Design Factor	4:1	Outside Diameter	4.714
Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix	Inside Diameter	4
Minimum Operating Temperature	-20	Tube Material	Nitrile
Specifications Met	3A	Application	Food & Beverage Processing
Length per Package	100	Minimum Bend Radius	11
Media	Food & Beverage (Fatty & Oily Foods)	Cover Structure	Wrapped
Cover Color	Gray	Maximum Operating Pressure	200
Maximum Operating Temperature	225	Maximum Working Pressure (psi)	200
Hose I.D. (inch)	4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
