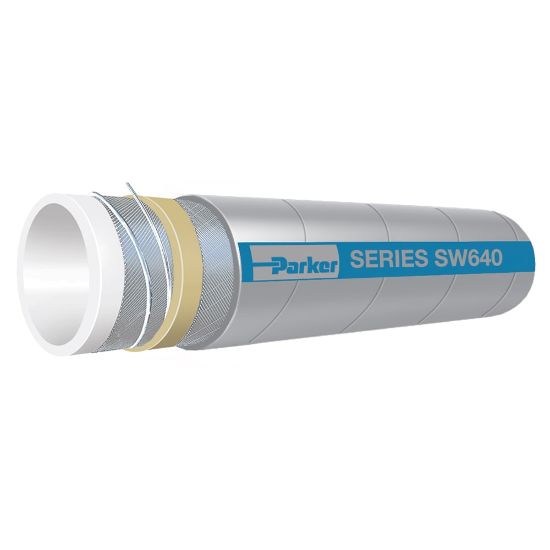

Parker SW640-2000 - TITANFLEX® Food and Beverage Suction Hose, Series SW640

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SW640-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length per Package	100	Media	Food & Beverage (Fatty & Oily Foods)
Cover Structure	Wrapped	Cover Color	Gray
Maximum Operating Temperature	225	Package Type	Coil
Division	Hose Products Division	Hose Inner Tube Material	White
Minimum Bend Radius	6	Vacuum Pressure Rating	Full
Maximum Operating Pressure	250	Design Factor	4:1
Cover Material	Nitrile	Outside Diameter	2.547
Inside Diameter	2	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Minimum Operating Temperature	-20	Weight	1.29
Tube Material	Nitrile	Specifications Met	3A
Application	Food & Beverage Processing	Maximum Working Pressure (psi)	250
Hose I.D. (inch)	2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
