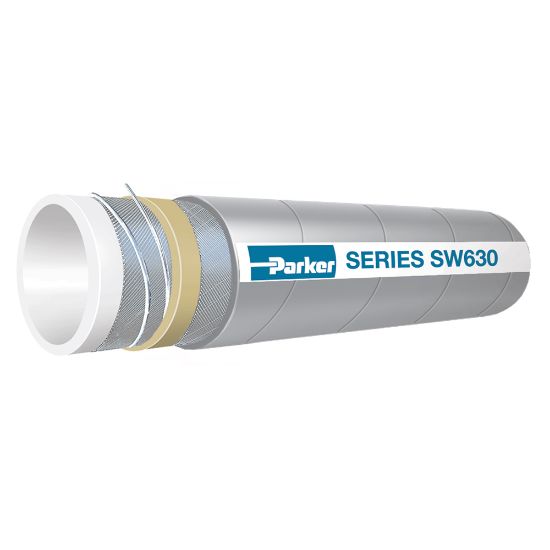

Parker SW630-4000 - TITANFLEX® Food and Beverage Suction Hose, Series SW630

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SW630-4000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Bend Radius	12	Application	Food & Beverage Processing
Design Factor	4:1	Specifications Met	3A
Length per Package	100	Cover Structure	Wrapped
Tube Material	Chlorobutyl	Inside Diameter	4
Cover Color	Gray	Maximum Operating Pressure	200
Maximum Operating Temperature	225	Package Type	Coil
Vacuum Pressure Rating	Full	Hose Inner Tube Material	White
Weight	3.18	Minimum Operating Temperature	-40
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Division	Hose Products Division
Outside Diameter	4.728	Media	Food & Beverage (Milk)
Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix	Hose I.D. (inch)	4
Maximum Working Pressure (psi)	200

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
