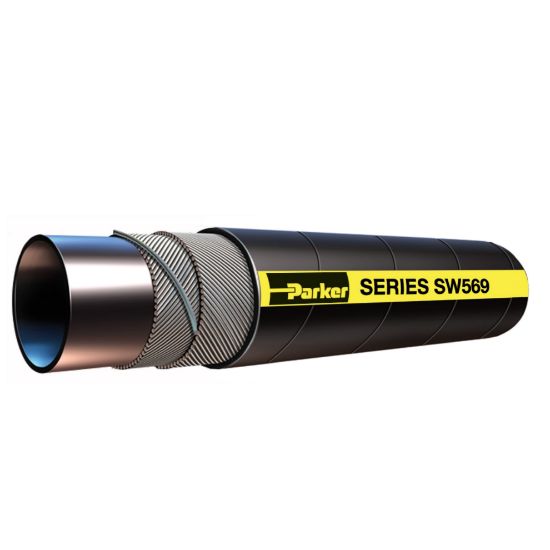

Parker SW569-1000 - ARMADA® Marine Multipurpose Oil Resistant Suction Hose, Series SW569

Armada Marine Multipurpose Oil Resistant Suction Hose is designed for marine engine fuel supply and venting, hardwall wet exhaust and other applications to 212°F and 75 psi, Series SW569

Availability:	Quote Required
Partner Available:	88 In Stock

Brand Parker

Part No. SW569-1000

$16.82

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Fuels - Check fuel type with our catalogue chart.
Weight	0.24 kg/ft	Outside Diameter	35.8 mm
Design Factor	4:1	Cover Material	Chloroprene Rubber (CR)
Maximum Operating Pressure	5.2 bar	Cover Color	Black
Hose Inner Tube Material	Black	Inside Diameter	25.4 mm
Vacuum Pressure Rating	Full	Application	Marine
Minimum Operating Temperature	-29 °C	Specifications Met	SAE J1942, Code F
Maximum Operating Temperature	100 °C	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Division	Hose Products Division	Minimum Bend Radius	51 mm
Hose I.D. (inch)	1
