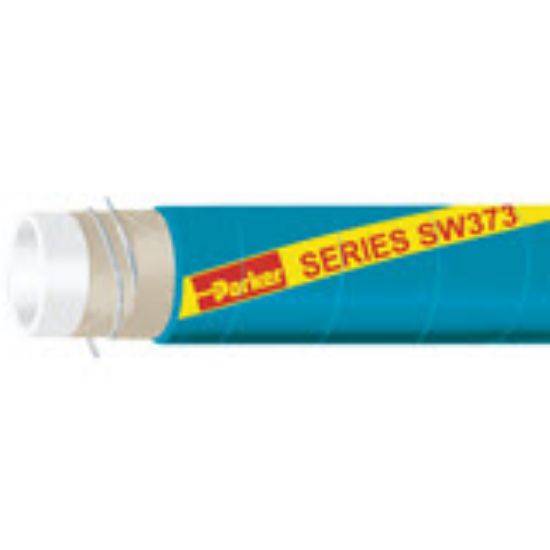

Parker SW373-1250 - Large Diameter FEP Chemical Suction Hose, Series SW373

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SW373-1250

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Length per Package	100	Minimum Bend Radius	11
Tube Material	Fluorinated Ethylene Propylene (FEP)	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Division	Hose Products Division	Package Type	Coil
Maximum Operating Pressure	375	Hose Inner Tube Material	White
Media	Acids	Vacuum Pressure Rating	Full
Outside Diameter	1.750	Cover Color	Blue
Design Factor	4:1	Cover Structure	Smooth
Compatible Fitting	n/a	Inside Diameter	1-1/4
Maximum Operating Temperature	300	Application	Chemical Transfer
Weight	0.75	Hose I.D. (inch)	1-1/4
Maximum Working Pressure (psi)	375

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
