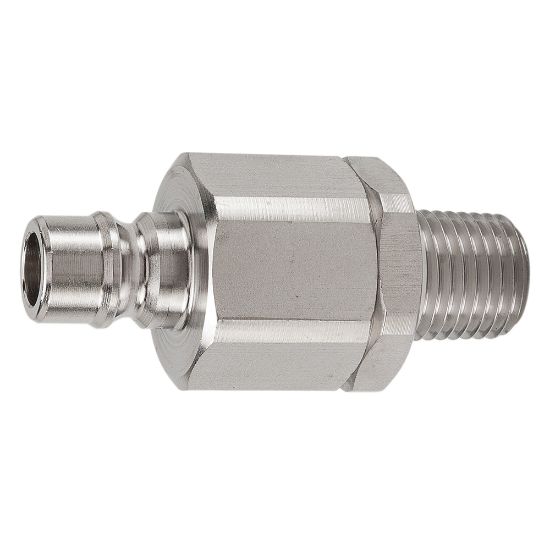

Parker SVHN8-8M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. SVHN8-8M

$187.82

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Dimensional Weight	0.05341726618705036 lb
Product Type	Manual Connect	Valve Type	Poppet
Plating Type	n/a	Application	General Purpose
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Hex Size	1.19 inch	Body Material	Stainless Steel
Connection Thread Size (inch)	1/2 - 14	Coupling Half	Male Nipple
Valve Type	Poppet	Body Material	316 Stainless Steel
Maximum Operating Pressure	3750	Body Size (inch)	1/2
Connection Type	Male NPT
