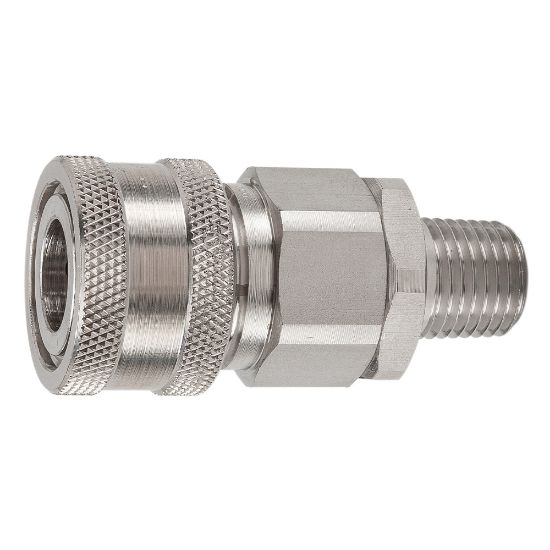

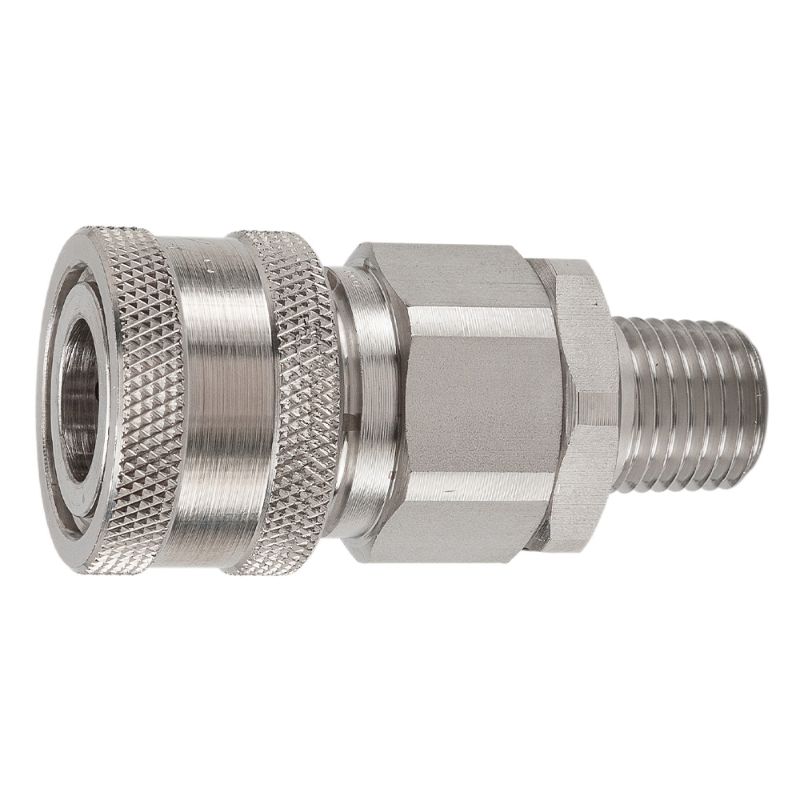

Parker SVHC8-8M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SVHC8-8M

$265.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.05460431654676258 lb
Valve Type	Poppet	Hex Size	1.19 inch
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Plating Type	n/a	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Application	Hydraulics
Body Material	Stainless Steel	Seal Material	Nitrile
Connection Thread Size (inch)	1/2 - 14	Valve Type	Poppet
Maximum Operating Pressure	3750	Coupling Half	Female Coupler
Body Material	316 Stainless Steel	Connection Type	Male NPT
Body Size (inch)	1/2
