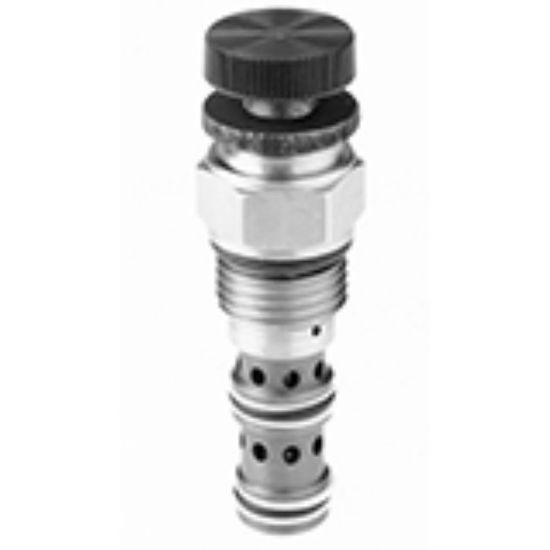

Parker SVH162T10 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SVH162T10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cracking Pressure	n/a	Maximum Inlet Pressure Rating	5500
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Drain Option	Internal
Operating Temperature	-30 to +250	Standard Setting Pressure	500
Installation Torque	73	Leak Rate	5 per 100 psi (6.8 bar) setting
Reseat Pressure	80% of set pressure	Maximum Operating Temperature	+250
Mounting Type	Threaded Cartridge Valve	Body Material	n/a
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Pressure	5500
Flow Rate	40	Cavity Size	6-3
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Pressure Setting	1000	Division	Hydraulic Systems Division
Pressure Control Sensitivity	334 per turn	Minimum Operating Temperature	-30
Adjustment Mechanism	Tamper Resistant	Weight	1
Seal Material	Nitrile	Maximum Drain Flow Rate	1.53
Actuation Type	Pressure Sensing	Pilot Location	External
Pressure Control Range	100-1000	Port Size	n/a
Maximum Tank Pressure	5000	Maximum Flow Rate	40
Function	Pilot Operated Sequence	Division	Hydraulic Valve Systems Division
Seal Material	Nitrile	Drain Option	Internal
Rated Flow (gpm)	40	Pilot Option	External
Pressure Range Adjustment (psi)	100-1000	Cracking Pressure (psi)	N/A
Adjustment Type	Tamper Resistant
