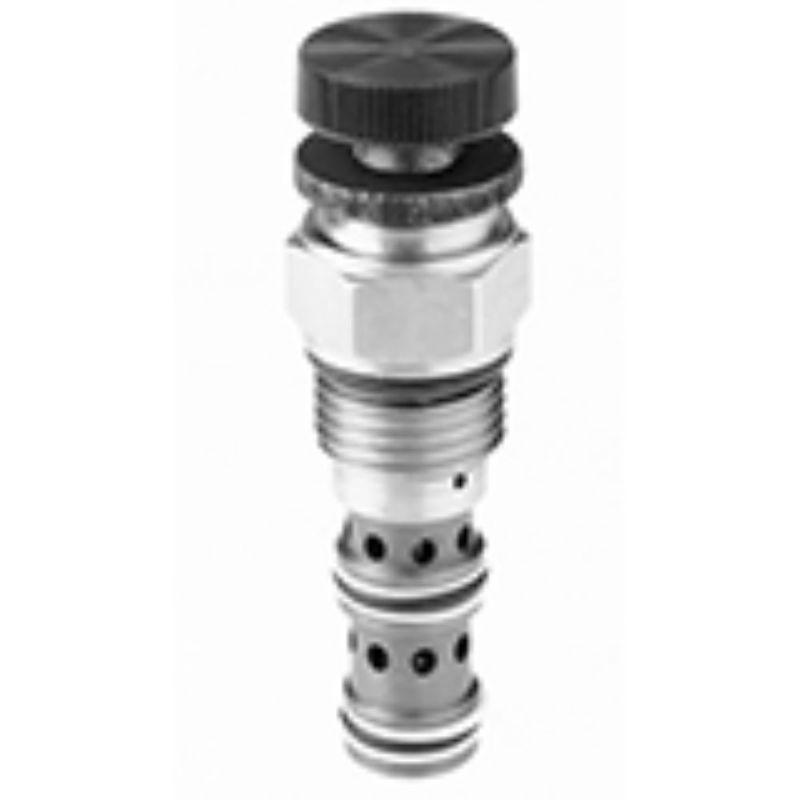

Parker SVH162S30 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SVH162S30

$179.06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Size	n/a	Body Material	n/a
Maximum Operating Pressure	5500 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Maximum Flow Rate	40 Gal/min	Actuation Type	Pressure Sensing
Maximum Pressure Setting	210 bar	Adjustment Mechanism	Screw
Maximum Tank Pressure	350 bar	Weight	1 lb
Function	Pilot Operated Sequence	Drain Option	Internal
Mounting Type	Threaded Cartridge Valve	Maximum Inlet Pressure Rating	5500 psi
Installation Torque	73 lb-ft	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Standard Setting Pressure	1500 psi	Pressure Control Range	300-3000 psi
Leak Rate	5 per 100 psi (6.8 bar) setting cm3/min	Pressure Control Sensitivity	59.7 per turn bar
Cracking Pressure	N/A bar	Flow Rate	151.6 L/min
Cavity Size	6-3	Reseat Pressure	80% of set pressure
Maximum Drain Flow Rate	0.82 L/min	Seal Material	Nitrile
Adjustment Type	Screw	Cracking Pressure (psi)	N/A
Drain Option	Internal	Pilot Option	External
Rated Flow (gpm)	40	Pressure Range Adjustment (psi)	300-3000
