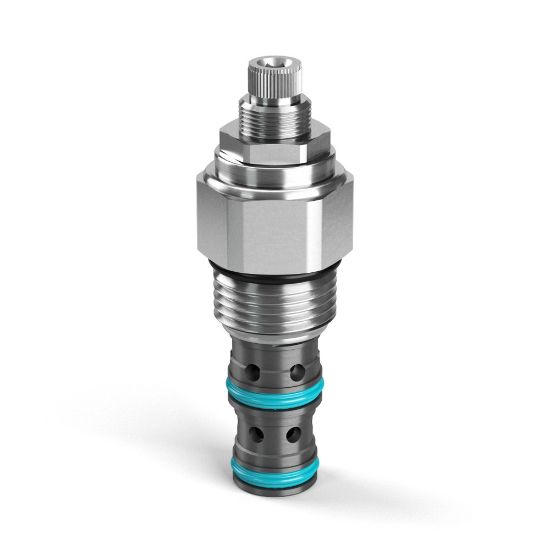

Parker SVH102F10 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SVH102F10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	n/a	Body Material	n/a
Maximum Operating Pressure	5500 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Flow Rate	15 Gal/min
Pilot Location	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Actuation Type	Pressure Sensing
Maximum Tank Pressure	5000 psi	Seal Material	D-Ring (Standard)
Weight	1 lb	Function	Pilot Operated Sequence
Cavity Size	C10-3	Drain Option	Internal
Mounting Type	Threaded Cartridge Valve	Adjustment Mechanism	Fixed
Maximum Inlet Pressure Rating	5500 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-35 to +200 °F	Maximum Operating Temperature	+93 °C
Installation Torque	51-55 lb-ft	Maximum Flow Rate	56.3 L/min
Pressure Control Sensitivity	N/A bar	Pressure Control Range	N/A psi
Maximum Pressure Setting	1000 psi	Standard Setting Pressure	34.5 bar
Cracking Pressure	N/A psi	Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min
Reseat Pressure	90% of set pressure	Maximum Drain Flow Rate	0.76 Gal/min
Seal Material	D-Ring (Standard)	Adjustment Type	Fixed
Cracking Pressure (psi)	N/A	Pressure Range Adjustment (psi)	N/A
Drain Option	Internal	Pilot Option	External
Rated Flow (gpm)	15
