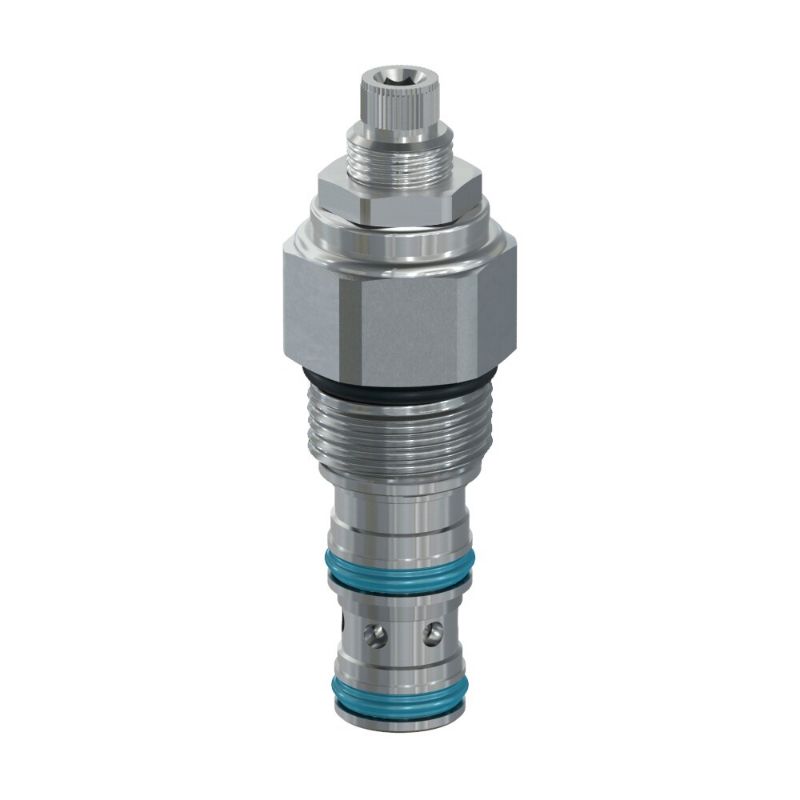

Parker SVH101K10 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. SVH101K10

$81.94

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Flow Rate	15 Gal/min
Pilot Location	Internal	Maximum Flow Rate	15 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Maximum Operating Temperature	+200 °F	Actuation Type	Pressure Sensing
Adjustment Mechanism	Knob	Maximum Tank Pressure	5000 psi
Seal Material	D-Ring (Standard)	Function	Pilot Operated Sequence
Cavity Size	C10-3	Drain Option	External
Weight	0.45 kg	Mounting Type	Threaded Cartridge Valve
Maximum Inlet Pressure Rating	5500 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-35 to +200 °F	Installation Torque	51-55 lb-ft
Maximum Operating Pressure	380 bar	Maximum Pressure Setting	1000 psi
Standard Setting Pressure	34.5 bar	Pressure Control Range	100-1000 psi
Pressure Control Sensitivity	285 per turn psi	Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min
Reseat Pressure	90% of set pressure	Cracking Pressure	N/A bar
Maximum Drain Flow Rate	0.94 Gal/min	Seal Material	D-Ring (Standard)
Pilot Option	Internal	Drain Option	External
Adjustment Type	Knob	Cracking Pressure (psi)	N/A
Rated Flow (gpm)	15	Pressure Range Adjustment (psi)	300-1000
