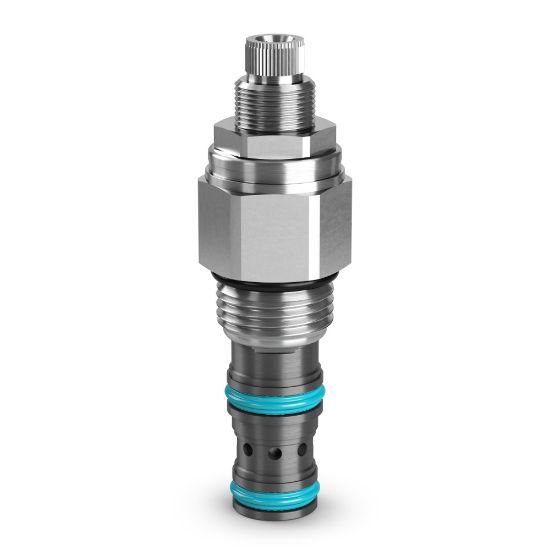

Parker SVH081F10V - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SVH081F10V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	n/a	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Pilot Location	Internal
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Weight	0.25	Maximum Operating Pressure	5500
Actuation Type	Pressure Sensing	Maximum Tank Pressure	5000
Pressure Control Sensitivity	n/a	Cracking Pressure	n/a
Pressure Control Range	n/a	Function	Pilot Operated Sequence
Cavity Size	C08-3	Drain Option	External
Flow Rate	12	Maximum Flow Rate	12
Mounting Type	Threaded Cartridge Valve	Adjustment Mechanism	Fixed
Maximum Inlet Pressure Rating	5500	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-15 to +400	Maximum Operating Temperature	+400
Installation Torque	32-36	Maximum Pressure Setting	1000
Standard Setting Pressure	500	Maximum Drain Flow Rate	0.15
Leak Rate	82 @ 3000 PSI (210 BAR)	Reseat Pressure	90% of set pressure
Seal Material	Fluorocarbon	Pilot Option	Internal
Drain Option	External	Adjustment Type	Fixed
Rated Flow (gpm)	12	Cracking Pressure (psi)	N/A
Pressure Range Adjustment (psi)	N/A
