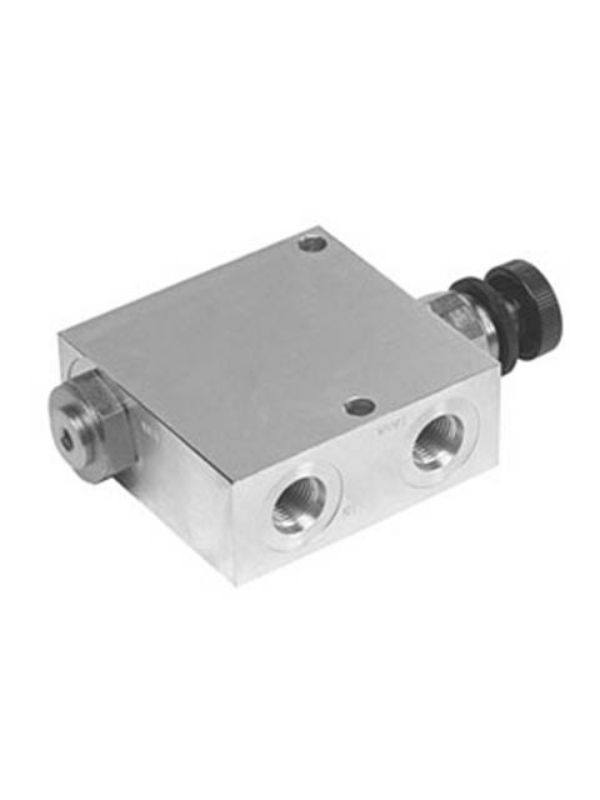

Parker SVCH101K10P50V-8T - SVCH101 Sequence Valve

Pilot Operated - Internal with Check Sequence Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SVCH101K10P50V-8T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Leakage	82 cc/min. (5 cu. in./min.) @ 210 Bar (3000 PSI)	Pkg Qty/UOM	1 EA
Seals	Fluorocarbon	Body Material	Steel
Pkg Qty	1	Port	8 SAE
Operating Temperature	-31.7C to +121.1C (-25F to +250F)	Pressure Range	6.9 - 69 Bar (100 - 1000 PSI)
Adjustment Type	Knob	UOM	EA
Rated Flow	56.3 LPM (15 GPM)	Max Pressure	380 Bar (5500 PSI)
Leakage	82 cc/min. (5 cu. in./min.) @ 210 Bar (3000 PSI)	Valve Type	Sequence Valve
Rated Flow	56.3 LPM (15 GPM)	Port	8 SAE
Body Material	Steel	Operating Temperature	-31.7C to +121.1C (-25F to +250F)
Pressure Range	6.9 - 69 Bar (100 - 1000 PSI)	Max Pressure	380 Bar (5500 PSI)
Parker Group	Hydraulic	Valve Type Detail	Pilot Operated - Internal with Check
Adjustment Type	Knob	Seals	Fluorocarbon
Parker Division	Hydraulic Cartridge Systems	Series	SVCH101
