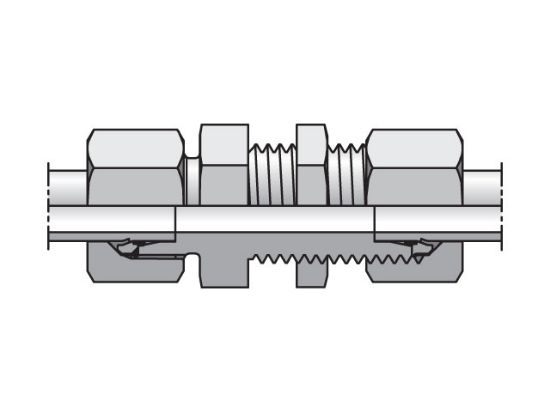

Parker SV08ZS71 - EO/EO-2 Straight, Bulkhead Union - SV

EO/EO-2 Straight, Bulkhead Union - 24° Flareless / 24° Flareless

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SV08ZS71

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
End 2	8 mm	EO-2 Seal	Fluorocarbon
End 1	8 mm	Material	Stainless Steel
Pressure Series	Heavy	Pressure Rating	630 bar
Pkg Qty	5	UOM	EA
Pressure Series	Heavy	Configuration Sub-Type	Bulkhead Union - 24° Flareless
End 1 Type	mm	End 2 Type	mm
Parker Division	Tube Fitting	Trade Name	EO/EO-2
Configuration Type	Straight	Series	EO-2
EO-2 Seal	Fluorocarbon	Inch/Metric	Metric
End 2	8 mm	Tube Fitting/Adapter Type	Bite Type, EO/EO-2 Flareless
Parker Group	Fluid Connector	End 1	8 mm
Material	Stainless Steel	Pressure Rating	630 bar
