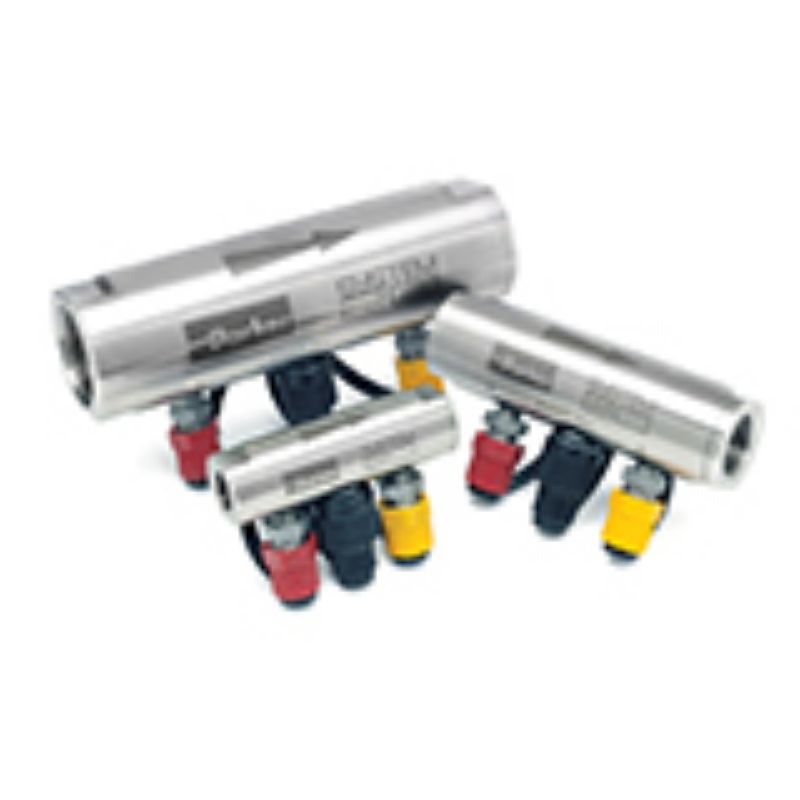

Picture of Parker STI01441002 - Inline Sensors & Monitors for emulsion oils - System 20

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker STI01441002 - Inline Sensors & Monitors for emulsion oils - System 20

System 20 monitors, combined with the inline sensor, give the user accurate and instant readings of oil or water flow, pressure and temperature without the need to shut down the system.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. STI01441002
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Materials of ConstructionStainless SteelLength95
Specifications MetCE CertificationMinimum Fluid Temperature-10
Seal MaterialFluorocarbonProduct TypeCondition Monitor
Operating Temperature-10 to 110Port TypeBSP
Thread SizeG3/8Operating Pressure6000
Product StyleFlow MeterIndustryIndustrial Manufacturing Equipment
Accuracy+/- 2.5% FSDSensing MethodDifferential Pressure
DivisionHydraulic & Industrial Process Filtration Division EMEATechnologyFiltration
Weight0.5Diameter30
Body MaterialStainless SteelBrandParker
Width30Height56
Maximum Fluid Temperature110DivisionHydraulic & Industrial Process Filtration Division EMEA
For Fluid TypeMineral OilPort Size⅜"
Size0Flow Rate6-25 l/min
