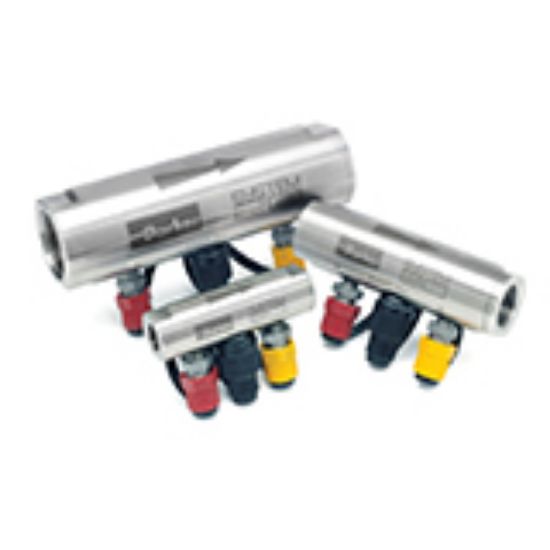

Picture of Parker STI0144100 - Inline Sensors & Monitors for emulsion oils - System 20

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker STI0144100 - Inline Sensors & Monitors for emulsion oils - System 20

System 20 monitors, combined with the inline sensor, give the user accurate and instant readings of oil or water flow, pressure and temperature without the need to shut down the system.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. STI0144100
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Fluid Temperature110 °CWidth30 mm
Port TypeBSPTechnologyHydraulics
Diameter30 mmWeight0.5 kg
Materials of ConstructionStainless SteelMinimum Fluid Temperature-10 °C
Accuracy+/- 2.5% FSDOperating Temperature-10 to 110 °C
Operating Pressure420 barBrandParker
DivisionHydraulic & Industrial Process Filtration Division EMEALength95 mm
Product StyleFlow MeterIndustryIndustrial Manufacturing Equipment
Thread SizeG3/8DivisionHydraulic & Industrial Process Filtration Division EMEA
Sensing MethodDifferential PressureHeight56 mm
Seal MaterialFluorocarbonSpecifications MetCE Certification
Body MaterialStainless SteelProduct TypeCondition Monitor
Port Size⅜"Size0
Flow Rate6-25 l/minFor Fluid TypeMineral Oil
