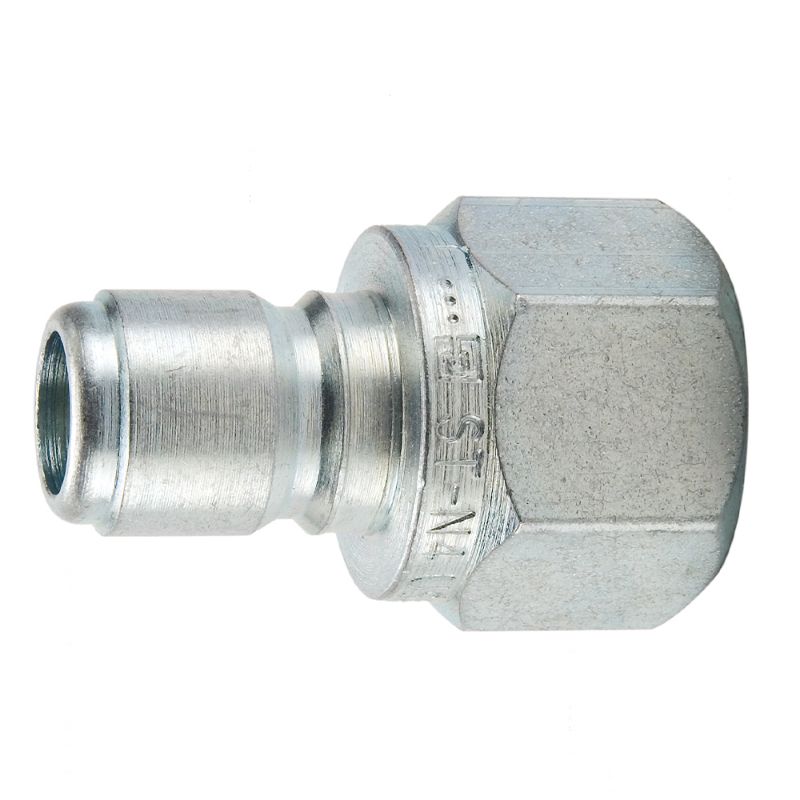

Parker ST-N8 - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. ST-N8

$60.24

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Application	High Flow
Minimum Operating Temperature	-40 °F	Seal Material	n/a
Division	Quick Coupling Division	Product Type	Push to Connect
Dimensional Weight	0.12464028776978417 lb	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Flow Rate	50 Gal/min
Valve Type	Unvalved	Hex Size	1.63 inch
Body Material	Steel	Coupling Half	Male Nipple
Maximum Operating Pressure	2000	Connection Thread Size (inch)	1 - 11 1/2
Connection Type	Female NPTF	Body Size (inch)	1
Body Material	Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
