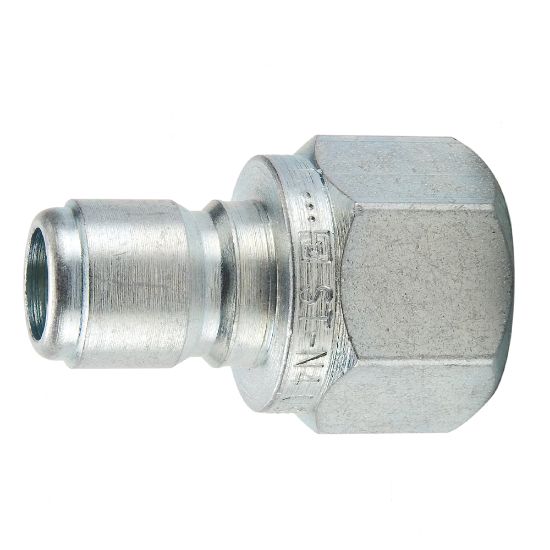

Parker ST-N3 - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Quote Required
Partner Available:	584 In Stock

Brand Parker

Part No. ST-N3

$8.10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Seal Material	n/a	Division	Quick Coupling Division
Product Type	Push to Connect	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Hex Size	0.88 inch
Valve Type	Unvalved	Dimensional Weight	0.01999400479616307 lb
Application	High Flow	Flow Rate	12 Gal/min
Body Material	Steel	Coupling Half	Male Nipple
Maximum Operating Pressure	3500	Body Size (inch)	3/8
Connection Thread Size (inch)	3/8 - 18	Connection Type	Female NPTF
Body Material	Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
