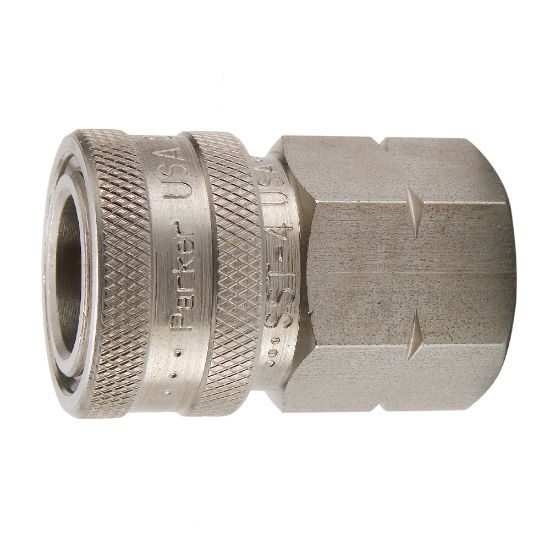

Parker SST-8Y - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SST-8Y

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Application	High Flow	Minimum Operating Temperature	-15 °F
Seal Material	Fluorocarbon	Hex Size	1.75 inch
Valve Type	Unvalved	Product Type	Push to Connect
Flow Rate	50 Gal/min	Body Material	Stainless Steel
Body Material	303 Stainless Steel	Connection Thread Size (inch)	1 - 11 1/2
Connection Type	Female NPTF	Body Size (inch)	1
Maximum Operating Pressure	1700	Coupling Half	Female Coupler
